Jan Willem

Heb hem nu eerst op mijn eigen computer gedownload en probeer het nu vanaf de computer de delen. Hopelijk is ie dan wel te openen Verlichting VCDS.xlsx

Ik heb geen trekhaak maar dacht dat het misschien een bruikbaar bestand was om iets kwa drl uit te zoeken. Oei, geen idee eigenlijk hoe dat werkt. Heb het inderdaad vanuit mijn drive gedeeld. Zal even kijken of het ook anders kan

Ik heb eens een complete lijst gemaakt met alle uitgangen en instellingen van mijn auto. Was bedoeld om te stoeien met mogelijkheden, kijk maar of je er iets mee kan Verlichting VCDS.gsheet

Klinkt als een airco pomp/koppeling die niet lekker meer is. Klappert de multiriem ook als je de airco activeert ?

;SW:3G0-920-791-D HW:3G0-920-791-D --- Instruments ;Component:KOMBI 403 4191 Coding:07A509086F84000801886A031001000880000000 ;EV_DashBoardVDDMQBAB 9058 EV_DashBoardVDDMQBAB_009_VW37.rod ;Thursday 1 May 2025 16:17:59:23461 ;VCDS Version: Release 25.3.1 (x64) Data version: 20250408 DS365.0 ;VCID: 2A09D3C77C7A930AF1F-807E IDE00295-Oil temperature display On 1 IDE00301-Distance 133897 km 3 IDE00342-ESI: Resetting ESI no warning 1 IDE00343-Language variant Dutch 1 IDE00345-MAS00234-MFA3-Reset-MFI button RESET / OK Manual reset: not possible 3 IDE00345-MAS05463-MFA3-Reset-Refuel detection gasoline / diesel MFA3-Reset 3 IDE00345-MAS05464-MFA3-Reset-Refuel detection gas MFA3-Reset 3 IDE00345-MAS12879-MFA3-Reset-Electrical refueling detection MFA3-Reset 3 IDE00499-Display correction of consumptions and operating range 100 % 1 IDE00500-Hour 16 H 1 IDE00501-Minute 18 min 1 IDE00502-Year 2025 yr 2 IDE00503-Month 5 Months 1 IDE00504-Day 1 d 1 IDE00510-ESI: distance driven from inspection 2309 km 3 IDE00511-ESI: time from inspection 31 d 2 IDE00512-ESI: minimum value km-driving distance/inspection 15000 km 2 IDE00513-ESI: maximum value km-driving distance/inspection 30000 km 2 IDE00514-ESI: maximum value of time between inspections 730 d 2 IDE00515-ESI: oil quality poor oil quality 1 IDE00517-ESI: soot entry 0 km 2 IDE00518-ESI: thermal load 3100 km 2 IDE00819-Day counter 2331 d 2 IDE00820-Activating and deactivating all development messages not active 1 IDE00827-ESI: minimum value of time between inspections 365 d 2 IDE01153-SIA: maximum value of distance to service 15000 km 2 IDE01154-SIA: maximum value of time to service 365 d 2 IDE02489-Display depiction Variant 2 1 IDE02818-IDE02689-Offset for tank calibration values-Complete tank calibration -12.8 l 5 IDE02818-MAS02376-Offset for tank calibration values-Offset sensor 1 -12.8 l 5 IDE02818-MAS02377-Offset for tank calibration values-Offset sensor 2 12.7 l 5 IDE02818-MAS02378-Offset for tank calibration values-Offset sensor 3 12.7 l 5 IDE02818-MAS02379-Offset for tank calibration values-Offset sensor 4 12.7 l 5 IDE03329-Driving profiled for range remaining 6.6 l/100km 2 IDE03346-IDE00301-Units adjusted-Distance Kilometers 3 IDE03346-MAS01230-Units adjusted-Date dd_mm_yy 3 IDE03346-MAS01456-Units adjusted-Speed Kilometers per hour 3 IDE03346-MAS02201-Units adjusted-Temperature Degrees Celsius 3 IDE03346-MAS02957-Units adjusted-Time 24h 3 IDE03346-MAS03032-Units adjusted-Volume Liters 3 IDE03346-MAS03034-Units adjusted-Pressure bar 3 IDE03346-MAS05637-Units adjusted-Operating range consumption: CNG (compressed natural gas) kg per 100 km 3 IDE03346-MAS05638-Units adjusted-Consumption gasoline / diesel - LPG (liquefied petroleum gas) Kilometers per liter 3 IDE03346-MAS05875-Units adjusted-Average consumption: electric drive kWh per 100 km 3 IDE03346-MAS13665-Units adjusted-Trailer/support load ground kilogram (kg) 3 IDE03348-MAS01456-Speed warning-Speed 0 2 IDE03348-MAS01561-Speed warning-Unit Kilometers per hour 2 IDE03348-Speed warning- not active 2 IDE03349-FIX: Max. distance until next mileage-related inspection 30000 km 2 IDE03350-FIX: Maximum time until next time-dependent inspection 365 d 2 IDE03351-FIX: Distance covered since last mileage-dependent inspection 2300 km 2 IDE03352-FIX: Time since last time-dependent inspection 31 d 2 IDE03372-Source for synchronization of time GPS 1 IDE03568-ENG119828-Service-key settings-p_deactivate_SK_Function On 5 IDE03568-ENG99943-Service-key settings-p_forcewrite_qual_time 10 s 5 IDE03568-ENG119827-Service-key settings-p_main_switch_Basic On 5 IDE03568-ENG102414-Service-key settings-p_main_switch_keyless On 5 IDE03568-ENG102611-Service-key settings-p_write_delay_speed 20 km/h 5 IDE03568-ENG103545-Service-key settings-p_write_delay_time 40 s 5 IDE03568-ENG104099-Service-key settings-p_write_distance 20 km 5 IDE03867-Deactivate seat belt warning No 1 IDE05930-Service notification in days 30 d 1 IDE05931-FIX: Reset value for next mileage-dependent inspection 30000 km 2 IDE05932-FIX: Reset value for next time-dependent inspections 365 d 2 IDE05971-Vehicle Positioning System Interface Control Module not installed 1 IDE06425-Dynamometer mode: functional not activated 1 IDE06588-Ignition active message: actuator Driver door 1 IDE06922-No-voltage display Unknown (2) 1 IDE07221-Cylinder shut-off Display 1 IDE11086-Service notification 30 d 1 IDE11932-MAS01877-Display of colour adjustment-Red 0 3 IDE11932-MAS01878-Display of colour adjustment-Green 0 3 IDE11932-MAS01879-Display of colour adjustment-Blue 0 3 IDE12226-MAS03686-Display of longitudinal regulation coordinator-Automatic distance regulation active 1 IDE12226-MAS05203-Display of longitudinal regulation coordinator-CCS active 1 IDE12226-MAS10720-Display of longitudinal regulation coordinator-Speed limiter active 1 IDE14220-Vehicle speed warning for India- No 1 IDE14220-Vehicle speed warning for India- 0 s 1 MAS03555-Lap counter Conditions not correct or request sequence error 1 ENG117917-BAP_Debug_Mode_Release not_released 1 ENG119877-ENG98401-Configuration of Development CAN-Messages-Block 1 OFF 20 ENG119877-ENG98402-Configuration of Development CAN-Messages-Block 10 OFF 20 ENG119877-ENG98445-Configuration of Development CAN-Messages-Block 11 OFF 20 ENG119877-ENG98403-Configuration of Development CAN-Messages-Block 12 OFF 20 ENG119877-ENG98446-Configuration of Development CAN-Messages-Block 13 OFF 20 ENG119877-ENG98447-Configuration of Development CAN-Messages-Block 14 OFF 20 ENG119877-ENG98448-Configuration of Development CAN-Messages-Block 15 OFF 20 ENG119877-ENG98404-Configuration of Development CAN-Messages-Block 16 OFF 20 ENG119877-ENG98449-Configuration of Development CAN-Messages-Block 17 OFF 20 ENG119877-ENG98450-Configuration of Development CAN-Messages-Block 18 OFF 20 ENG119877-ENG98451-Configuration of Development CAN-Messages-Block 19 OFF 20 ENG119877-ENG98452-Configuration of Development CAN-Messages-Block 2 OFF 20 ENG119877-ENG98405-Configuration of Development CAN-Messages-Block 20 OFF 20 ENG119877-ENG98453-Configuration of Development CAN-Messages-Block 21 OFF 20 ENG119877-ENG98406-Configuration of Development CAN-Messages-Block 22 OFF 20 ENG119877-ENG98454-Configuration of Development CAN-Messages-Block 23 OFF 20 ENG119877-ENG98455-Configuration of Development CAN-Messages-Block 24 OFF 20 ENG119877-ENG98456-Configuration of Development CAN-Messages-Block 25 OFF 20 ENG119877-ENG98407-Configuration of Development CAN-Messages-Block 26 OFF 20 ENG119877-ENG98457-Configuration of Development CAN-Messages-Block 27 OFF 20 ENG119877-ENG98458-Configuration of Development CAN-Messages-Block 28 OFF 20 ENG119877-ENG98459-Configuration of Development CAN-Messages-Block 29 OFF 20 ENG119877-ENG98408-Configuration of Development CAN-Messages-Block 3 OFF 20 ENG119877-ENG98409-Configuration of Development CAN-Messages-Block 30 OFF 20 ENG119877-ENG125180-Configuration of Development CAN-Messages-Block 31 OFF 20 ENG119877-ENG125181-Configuration of Development CAN-Messages-Block 32 OFF 20 ENG119877-ENG125182-Configuration of Development CAN-Messages-Block 33 OFF 20 ENG119877-ENG125183-Configuration of Development CAN-Messages-Block 34 OFF 20 ENG119877-ENG125184-Configuration of Development CAN-Messages-Block 35 OFF 20 ENG119877-ENG125185-Configuration of Development CAN-Messages-Block 36 OFF 20 ENG119877-ENG125186-Configuration of Development CAN-Messages-Block 37 OFF 20 ENG119877-ENG125187-Configuration of Development CAN-Messages-Block 38 OFF 20 ENG119877-ENG125188-Configuration of Development CAN-Messages-Block 39 OFF 20 ENG119877-ENG98410-Configuration of Development CAN-Messages-Block 4 OFF 20 ENG119877-ENG98460-Configuration of Development CAN-Messages-Block 5 OFF 20 ENG119877-ENG98461-Configuration of Development CAN-Messages-Block 6 OFF 20 ENG119877-ENG98462-Configuration of Development CAN-Messages-Block 7 OFF 20 ENG119877-ENG98411-Configuration of Development CAN-Messages-Block 8 OFF 20 ENG119877-ENG98463-Configuration of Development CAN-Messages-Block 9 OFF 20 ENG119875-defuel_threshold 9 l 1 ENG128744-ENG101574-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X1 00 00 24 ENG128744-ENG99557-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X2 00 0A 24 ENG128744-ENG102140-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X3 00 32 24 ENG128744-ENG102936-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X4 00 64 24 ENG128744-ENG103548-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X5 00 96 24 ENG128744-ENG113992-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-X6 00 FD 24 ENG128744-ENG99777-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y1 00 32 24 ENG128744-ENG100480-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y2 00 32 24 ENG128744-ENG100773-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y3 00 78 24 ENG128744-ENG100631-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y4 0,00E+00 24 ENG128744-ENG102174-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y5 01 F4 24 ENG128744-ENG113993-Dimming_characteristic_curve_adjustment_fpk_indicator_lights-Y6 3,00E+08 24 ENG128743-ENG101574-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X1 00 00 24 ENG128743-ENG99557-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X2 00 0A 24 ENG128743-ENG102140-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X3 00 64 24 ENG128743-ENG102936-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X4 00 96 24 ENG128743-ENG103548-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X5 00 DC 24 ENG128743-ENG113992-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-X6 00 FD 24 ENG128743-ENG99777-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y1 00 09 24 ENG128743-ENG100480-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y2 00 09 24 ENG128743-ENG100773-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y3 00 50 24 ENG128743-ENG100631-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y4 01 90 24 ENG128743-ENG102174-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y5 03 52 24 ENG128743-ENG113993-Dimming_characteristic_curve_adjustment_fpk_middle_display_main_field-Y6 3,00E+08 24 ENG119878-ENG101574-dimming_characteristic_curve_adjustment_internal_phototransistor-X1 00 00 20 ENG119878-ENG99557-dimming_characteristic_curve_adjustment_internal_phototransistor-X2 00 01 20 ENG119878-ENG102140-dimming_characteristic_curve_adjustment_internal_phototransistor-X3 00 32 20 ENG119878-ENG102936-dimming_characteristic_curve_adjustment_internal_phototransistor-X4 01 2C 20 ENG119878-ENG103548-dimming_characteristic_curve_adjustment_internal_phototransistor-X5 01 F4 20 ENG119878-ENG99777-dimming_characteristic_curve_adjustment_internal_phototransistor-Y1 00 00 20 ENG119878-ENG100480-dimming_characteristic_curve_adjustment_internal_phototransistor-Y2 00 0A 20 ENG119878-ENG100773-dimming_characteristic_curve_adjustment_internal_phototransistor-Y3 00 32 20 ENG119878-ENG100631-dimming_characteristic_curve_adjustment_internal_phototransistor-Y4 00 96 20 ENG119878-ENG102174-dimming_characteristic_curve_adjustment_internal_phototransistor-Y5 00 FD 20 ENG119874-Gas_functionality not active 1 ENG125906-ENG125912-Illumination_algorithm-Pointer_illumination_algorithim terminal_58xd_log_bus_parkinglight 1 ENG125906-ENG126396-Illumination_algorithm-Scale_switching_algorithm parking_light 1 ENG119882-init_fuel_algorithm No 1 ENG130585-Leaving_warning_delay 1.6 s 1 ENG102605-ENG103211-outside_temperature-p_blocking_time_after_v_bigger_0 15 s 16 ENG102605-ENG100239-outside_temperature-p_ice_warning_entry_temperature 4 °C 16 ENG102605-ENG103023-outside_temperature-p_ice_warning_exit_temperature 6 °C 16 ENG102605-ENG102658-outside_temperature-p_kmt_at_delta 25 °C 16 ENG102605-ENG99866-outside_temperature-p_mileage_after_v_bigger_0 5.0 km 16 ENG102605-ENG103631-outside_temperature-P_speed_threshold 20 km/h 16 ENG102605-ENG99450-outside_temperature-p_storage_time_engine_off 180 min 16 ENG102605-ENG104179-outside_temperature-p_tendency_damping 15 s 16 ENG102605-ENG103335-outside_temperature-p_tendency_threshold 1.0 °C 16 ENG102605-ENG100500-outside_temperature-p_time_constant_pt1 40 s 16 ENG102605-ENG103256-outside_temperature-p_time_constant_slow_damping 2.0 16 ENG119825-Picture_Upload_Download not active 1 ENG126396-Scale_switching_algorithm lowbeam_foglight 1 ENG153765-Second_digital_speed Display 1 ENG119876-Service_Key_Clear_All_Counter Yes 1 ENG130584-Statistic_phev_mileage 5 km 1 ENG109442-ENG119793-time_parameter_display-hmi_t_Dreiter_ms 2.0 s 18 ENG109442-ENG119794-time_parameter_display-hmi_t_dummyMenuTimeout_ms 5 s 18 ENG109442-ENG119802-time_parameter_display-hmi_t_FondGurt 35 s 18 ENG109442-ENG119804-time_parameter_display-hmi_t_FTuerAUF 300 ms 18 ENG109442-ENG119796-time_parameter_display-hmi_t_MenuTimeout_ms 255 s 18 ENG109442-ENG119799-time_parameter_display-hmi_t_NextServiceAnz_ms 5 s 18 ENG109442-ENG119798-time_parameter_display-hmi_t_NextWarning_ms 6 s 18 ENG109442-ENG119805-time_parameter_display-hmi_t_P1Pause_ms 20 s 18 ENG109442-ENG119800-time_parameter_display-hmi_t_P2Pause_ms 900 s 18 ENG109442-ENG119801-time_parameter_display-hmi_t_Quit_ms 10 s 18 ENG109442-ENG119797-time_parameter_display-hmi_t_TWSAnz_ms 3 s 18 ENG109442-ENG119795-time_parameter_display-hmi_t_UhrTimeout_ms 10 s 18 ENG109442-ENG119803-time_parameter_display-hmi_t_USZ 0.20 s 18 ENG109442-ENG119806-time_parameter_display-rollierblockgroesse 3 18 ENG109442-ENG101663-time_parameter_display-tDD15_off 0.15 18 ENG109442-ENG103975-time_parameter_display-tDD15_on 0.00 18 ENG109442-ENG100026-time_parameter_display-tDDWUP 0.00 18 ENG112418-ENG112412-total_range_gas-consumption_factor 0 4 ENG112418-ENG112411-total_range_gas-consumption_profile consumption_profile_calculation 4 ENG112418-ENG112410-total_range_gas-selection_consumption_factor consumption_factor_CAN 4 ENG112418-ENG99298-total_range_gas-State not active 4 ENG153766-Tube_version variant_4 1 Elapsed Time: 00:29 ;SW:5NA-035-020-C HW:5NA-035-020 --- Information Electr. ;Component:MU-H-ND-EU H55 1161 Coding:02840201FF0000005111010100880A031F0106E401200400DE ;EV_MUHig4CGen2HBAS 1001 EV_MUHig4CGen2HBAS_VW37.rod ;Thursday 1 May 2025 16:24:54:23461 ;VCDS Version: Release 25.3.1 (x64) Data version: 20250408 DS365.0 ;VCID: 313BC4AB51ACE0D2305-8064 IDE00001-Production mode 00 00 00 3 IDE00346-Summertime-automatic Europe 1 IDE00759-Base volume of speech output 50 % 1 IDE00760-Microphone sensitivity 0 dB 1 IDE00768-Country identification: country of sale -- 2 IDE00769-Call number 1 for info call FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE00770-Number 1 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE00820-ENG117828-Activating and deactivating all development messages-Infotainment_CAN_Messages OFF 1 IDE00820-ENG117829-Activating and deactivating all development messages-MIB_CAN_Messages OFF 1 IDE00845-Wheel circumference 0 mm 2 IDE01996-MAS00076-Installation list: specified installations-Instrument cluster control module Yes 3 IDE01996-MAS00839-Installation list: specified installations-TV Tuner No 3 IDE01996-MAS00844-Installation list: specified installations-Radio No 3 IDE01996-MAS00847-Installation list: specified installations-Digital Sound System Control Module No 3 IDE01996-MAS00849-Installation list: specified installations-Information electronics control module 1 Yes 3 IDE01996-MAS00850-Installation list: specified installations-Information electronics control module 2 No 3 IDE01996-MAS04300-Installation list: specified installations-DVD changer No 3 IDE01996-MAS14306-Installation list: specified installations-Windshield projection head up display control module No 3 IDE01996-SFT271943-Installation list: specified installations-Multimedia system control head No 3 IDE01996-ENG154341-Installation list: specified installations-Reserved_8 No 3 IDE01996-ENG152491-Installation list: specified installations-Smart Control Carrier 1 No 3 IDE01996-ENG152490-Installation list: specified installations-Smart Control Carrier 2 No 3 IDE01996-ENG152488-Installation list: specified installations-Smart Display Carrier 1 No 3 IDE01996-ENG152492-Installation list: specified installations-Smart Display Carrier 2 No 3 IDE01996-ENG152493-Installation list: specified installations-Wireless Charger 1 No 3 IDE01996-ENG152489-Installation list: specified installations-Wireless Charger 2 No 3 IDE02121-CD eject button Enabled 1 IDE02122-Developer mode not activated 1 IDE02330-Call number 2 for info call FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02331-Number 2 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02332-Deactivate production mode 0 3 IDE02476-MAS03001-Electrical test of speakers-Mode automatic 49 IDE02476-ENG117360-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_1_Test_Frequency 19000 Hz 49 IDE02476-ENG117361-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_1_Test_Volume 22 49 IDE02476-ENG117378-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_10_Test_Frequency 19000 Hz 49 IDE02476-ENG117379-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_10_Test_Volume 22 49 IDE02476-ENG117380-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_11_Test_Frequency 19000 Hz 49 IDE02476-ENG117381-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_11_Test_Volume 22 49 IDE02476-ENG117382-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_12_Test_Frequency 19000 Hz 49 IDE02476-ENG117383-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_12_Test_Volume 22 49 IDE02476-ENG117384-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_13_Test_Frequency 19000 Hz 49 IDE02476-ENG117385-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_13_Test_Volume 22 49 IDE02476-ENG117386-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_14_Test_Frequency 19000 Hz 49 IDE02476-ENG117387-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_14_Test_Volume 22 49 IDE02476-ENG117388-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_15_Test_Frequency 19000 Hz 49 IDE02476-ENG117389-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_15_Test_Volume 22 49 IDE02476-ENG117390-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_16_Test_Frequency 19000 Hz 49 IDE02476-ENG117391-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_16_Test_Volume 22 49 IDE02476-ENG117362-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_2_Test_Frequency 19000 Hz 49 IDE02476-ENG117363-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_2_Test_Volume 22 49 IDE02476-ENG117364-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_3_Test_Frequency 19000 Hz 49 IDE02476-ENG117365-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_3_Test_Volume 22 49 IDE02476-ENG117366-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_4_Test_Frequency 19000 Hz 49 IDE02476-ENG117367-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_4_Test_Volume 22 49 IDE02476-ENG117368-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_5_Test_Frequency 19000 Hz 49 IDE02476-ENG117369-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_5_Test_Volume 22 49 IDE02476-ENG117370-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_6_Test_Frequency 19000 Hz 49 IDE02476-ENG117371-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_6_Test_Volume 22 49 IDE02476-ENG117372-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_7_Test_Frequency 19000 Hz 49 IDE02476-ENG117373-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_7_Test_Volume 22 49 IDE02476-ENG117374-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_8_Test_Frequency 19000 Hz 49 IDE02476-ENG117375-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_8_Test_Volume 22 49 IDE02476-ENG117376-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_9_Test_Frequency 19000 Hz 49 IDE02476-ENG117377-Electrical test of speakers-Parameter_AC-Diagnostics_Channel_9_Test_Volume 22 49 IDE02502-Confirmation of installation change 24 A0 2 IDE02506-MAS03229-Copy multimedia data-Data carrier On 1 IDE02506-MAS03230-Copy multimedia data-Optical drive On 1 IDE02607-Wheel pulse 0 2 IDE02699-Number 1 for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE02701-Number 1 (roaming) for roadside assistance FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF 23 IDE03471-ENG117847-Vehicle configuration-advanced_range_display OFF 30 IDE03471-ENG249824-Vehicle configuration-AliBox OFF 30 IDE03471-ENG142146-Vehicle configuration-allow_message_editing On 30 IDE03471-ENG130249-Vehicle configuration-Apple_DIO On 30 IDE03471-ENG185764-Vehicle configuration-Apple_DIO_Wireless OFF 30 IDE03471-ENG152525-Vehicle configuration-Baidu_Car_Life OFF 30 IDE03471-ENG152559-Vehicle configuration-Baidu_Car_Life_ios OFF 30 IDE03471-ENG185765-Vehicle configuration-Baidu_Car_Life_ios_Wireless OFF 30 IDE03471-ENG185766-Vehicle configuration-Baidu_Car_Life_Wireless OFF 30 IDE03471-ENG152560-Vehicle configuration-block_hmi_function_p_epb locked 30 IDE03471-ENG142151-Vehicle configuration-conditioning_variant 0 30 IDE03471-ENG263540-Vehicle configuration-correction_e_mileage 0 30 IDE03471-ENG125043-Vehicle configuration-Dtmf_without_active_call On 30 IDE03471-ENG142145-Vehicle configuration-esim_data_only_sms_support OFF 30 IDE03471-ENG185778-Vehicle configuration-FoD SWaP 30 IDE03471-ENG130248-Vehicle configuration-Google_GAL On 30 IDE03471-ENG185779-Vehicle configuration-Google_GAL_Wireless OFF 30 IDE03471-ENG117850-Vehicle configuration-gracenote_local_coverarts On 30 IDE03471-ENG117851-Vehicle configuration-gracenote_local_other On 30 IDE03471-ENG117848-Vehicle configuration-gracenote_online_coverarts On 30 IDE03471-ENG117849-Vehicle configuration-gracenote_online_other On 30 IDE03471-ENG152533-Vehicle configuration-Hybrid_Radio_additional_online_data not activated 30 IDE03471-ENG152534-Vehicle configuration-Hybrid_Radio_Range_Extender Deactivated 30 IDE03471-ENG261211-Vehicle configuration-internet_over_WLAN_default_setting OFF 30 IDE03471-ENG125049-Vehicle configuration-Joker_button_1 not installed 30 IDE03471-ENG125050-Vehicle configuration-Joker_button_2 not installed 30 IDE03471-ENG127492-Vehicle configuration-LGI OFF 30 IDE03471-ENG130246-Vehicle configuration-LTE_modul Deactivated 30 IDE03471-ENG142142-Vehicle configuration-map_email_support OFF 30 IDE03471-ENG142143-Vehicle configuration-map_instant_messaging_support OFF 30 IDE03471-ENG142141-Vehicle configuration-map_sms_support On 30 IDE03471-ENG142152-Vehicle configuration-Map_Style 1 30 IDE03471-ENG152537-Vehicle configuration-media_control not activated 30 IDE03471-ENG138662-Vehicle configuration-Mirror_link On 30 IDE03471-ENG142148-Vehicle configuration-MirrorLink_Country_Code MIB_EU 30 IDE03471-ENG142150-Vehicle configuration-MirrorLink_RGB_Preference RGB888 30 IDE03471-ENG117843-Vehicle configuration-my_audi OFF 30 IDE03471-ENG117845-Vehicle configuration-online_dictation OFF 30 IDE03471-ENG127495-Vehicle configuration-online_media OFF 30 IDE03471-ENG117840-Vehicle configuration-online_navigation OFF 30 IDE03471-ENG117837-Vehicle configuration-online_POI OFF 30 IDE03471-ENG117838-Vehicle configuration-online_POI_voice OFF 30 IDE03471-ENG117839-Vehicle configuration-online_portal_browser_services OFF 30 IDE03471-ENG152553-Vehicle configuration-online_radio Deactivated 30 IDE03471-ENG117841-Vehicle configuration-online_street_view OFF 30 IDE03471-ENG125048-Vehicle configuration-OPS_display_in_dash_board_display_unit OFF 30 IDE03471-ENG167521-Vehicle configuration-perso_v_threshold 0 30 IDE03471-ENG167522-Vehicle configuration-perso_v_threshold_hysteresis 0 30 IDE03471-ENG152554-Vehicle configuration-Phone_HMI_Privacy 0 30 IDE03471-ENG125046-Vehicle configuration-Phone_module_operation_mode only data service act. 30 IDE03471-ENG117844-Vehicle configuration-picture_navi On 30 IDE03471-ENG167523-Vehicle configuration-Pilot_Parking not activated 30 IDE03471-ENG167525-Vehicle configuration-Popup_if_GPS_services_in_use not activated 30 IDE03471-ENG152555-Vehicle configuration-Privacy_WithPINRequest 0 30 IDE03471-ENG127496-Vehicle configuration-ProbeCar_lgi OFF 30 IDE03471-ENG137646-Vehicle configuration-ProbeCar_vzo OFF 30 IDE03471-ENG125047-Vehicle configuration-PSD_Protocol_Version PSD_1.5 30 IDE03471-ENG117846-Vehicle configuration-remote_HMI OFF 30 IDE03471-ENG138661-Vehicle configuration-RSE_software_component activated 30 IDE03471-ENG245031-Vehicle configuration-rvc_low_black_screen_trunk_open not activated 30 IDE03471-ENG244966-Vehicle configuration-rvc_low_black_screen_velocity_threshold not activated 30 IDE03471-ENG245015-Vehicle configuration-rvc_low_failsafe not activated 30 IDE03471-ENG126143-Vehicle configuration-RVC_video_input FBAS 30 IDE03471-ENG152556-Vehicle configuration-scon_telephony not activated 30 IDE03471-ENG142081-Vehicle configuration-sd_slot_deactivation no restriction 30 IDE03471-ENG138660-Vehicle configuration-SDS_Region_Flag REGION_EU 30 IDE03471-ENG152557-Vehicle configuration-show_volte_hmi_switch not activated 30 IDE03471-ENG125045-Vehicle configuration-Sim_card_mode_switch present 30 IDE03471-ENG142144-Vehicle configuration-sim_data_only_sms_support On 30 IDE03471-ENG138663-Vehicle configuration-Smartphone_interface_for_rhmi activated 30 IDE03471-ENG126993-Vehicle configuration-Station_Logo_DB_Mode 1 30 IDE03471-ENG125044-Vehicle configuration-Support_for_response_and_hold OFF 30 IDE03471-ENG125042-Vehicle configuration-Support_of_threeway_calling OFF 30 IDE03471-ENG130247-Vehicle configuration-Support_second_phone On 30 IDE03471-ENG167531-Vehicle configuration-Tencent_myCar_canceling_share_location OFF 30 IDE03471-ENG126994-Vehicle configuration-TPEG_availability OFF 30 IDE03471-ENG152571-Vehicle configuration-unblock_functions_while_piloted_driving locked 30 IDE03471-ENG137647-Vehicle configuration-UOTA OFF 30 IDE03471-ENG167532-Vehicle configuration-UOTA_2 OFF 30 IDE03471-ENG117852-Vehicle configuration-UPnP On 30 IDE03471-ENG142149-Vehicle configuration-vehicle_leaving_sound not activated 30 IDE03471-ENG142147-Vehicle configuration-vehicle_readiness_sound not activated 30 IDE03471-ENG152558-Vehicle configuration-voice_over_lte not activated 30 IDE03471-ENG117836-Vehicle configuration-VZAPro OFF 30 IDE03471-ENG127494-Vehicle configuration-VZO OFF 30 IDE03471-ENG137648-Vehicle configuration-WiFi_Client_HMI On 30 IDE03471-ENG117842-Vehicle configuration-WIFI_Hotspot On 30 IDE03471-ENG152572-Vehicle configuration-wlan_5ghz_switch not activated 30 IDE03902-Automatic ring break diagnostic No automatic start 1 IDE04295-Bluetooth: Preferred connection profile for phone book data PBAP 1 IDE04298-MAS01779-Vehicle dimensions-Length 0 mm 6 IDE04298-MAS01780-Vehicle dimensions-Width 0 mm 6 IDE04298-MAS02230-Vehicle dimensions-Height 0 mm 6 IDE04331-Selection of release codes for a SWaP function FF FF FF FF 4 IDE04484-ENG117426-Regional codes-Parameter_Set_BlueRay_System_Region_Code 2 2 IDE04484-ENG117425-Regional codes-Parameter_Set_DVD_Region_Code 2 2 IDE04521-Sporadic ring break detection optical 1 IDE04522-Awakening ability on optical databus OFF 1 IDE04550-Bluetooth: Sniff mode OFF 1 IDE05111-Fee-based traffic information (TMC) 32768 2 IDE05113-Infotainment Recorder activated 1 IDE06425-Dynamometer mode: functional- not activated 1 IDE06425-ENG98891-Dynamometer mode: functional-Reserved 0 1 IDE06697-Audio management mute function Muting of audio sources 1 IDE07399-ENG142045-Engine type-Engine_type_adaption_1 Petrol 1 IDE07399-ENG142046-Engine type-Engine_type_adaption_2 Petrol 1 IDE08814-IDE04033-Navigation receiver GNSS configuration-Compass On 1 IDE08814-MAS01570-Navigation receiver GNSS configuration-Default On 1 IDE08814-MAS02614-Navigation receiver GNSS configuration-GPS On 1 IDE08814-MAS07828-Navigation receiver GNSS configuration-Galileo On 1 IDE08814-MAS07829-Navigation receiver GNSS configuration-Glonass On 1 IDE08814-ENG142047-Navigation receiver GNSS configuration-external_gps_1 OFF 1 IDE08814-ENG142048-Navigation receiver GNSS configuration-external_gps_2 OFF 1 IDE10082-MAS09813-Telephone functions configuration-Entering Access Point Name On 1 IDE10082-MAS09814-Telephone functions configuration-Call Center Function On 1 IDE10082-MAS13846-Telephone functions configuration-Internet access via WiFi Available 1 IDE10082-MAS13847-Telephone functions configuration-Call center function on MIB: roadside assistance call On 1 IDE10082-MAS13848-Telephone functions configuration-Call center function on MIB: POI call On 1 IDE10082-MAS16726-Telephone functions configuration-Call center function on MIB: POI call regions OFF 1 IDE10221-MAS00839-Audio Management Input Gain Generation 2-TV Tuner -128 40 IDE10221-MAS00846-Audio Management Input Gain Generation 2-Satellite radio 5 40 IDE10221-MAS01984-Audio Management Input Gain Generation 2-Radio (FM) -128 40 IDE10221-MAS01985-Audio Management Input Gain Generation 2-Radio (AM) -128 40 IDE10221-MAS01986-Audio Management Input Gain Generation 2-Digital radio (DAB) -128 40 IDE10221-ENG125854-Audio Management Input Gain Generation 2-Exbox_DMB -128 40 IDE10221-ENG117430-Audio Management Input Gain Generation 2-HFP -128 40 IDE10221-ENG125846-Audio Management Input Gain Generation 2-Media_Airplay -128 40 IDE10221-ENG125837-Audio Management Input Gain Generation 2-Media_AUX_Adapter -128 40 IDE10221-ENG125836-Audio Management Input Gain Generation 2-Media_AUXIN -128 40 IDE10221-ENG125843-Audio Management Input Gain Generation 2-Media_Bluray -128 40 IDE10221-ENG125841-Audio Management Input Gain Generation 2-Media_BTDevice -128 40 IDE10221-ENG125838-Audio Management Input Gain Generation 2-Media_CDA -128 40 IDE10221-ENG125848-Audio Management Input Gain Generation 2-Media_Cloud -128 40 IDE10221-ENG125839-Audio Management Input Gain Generation 2-Media_DVD -128 40 IDE10221-ENG125844-Audio Management Input Gain Generation 2-Media_HDMI -128 40 IDE10221-ENG125840-Audio Management Input Gain Generation 2-Media_MFP -128 40 IDE10221-ENG125847-Audio Management Input Gain Generation 2-Media_UPNP -128 40 IDE10221-ENG125855-Audio Management Input Gain Generation 2-Mirrorlink -128 40 IDE10221-ENG125859-Audio Management Input Gain Generation 2-Phone_Ringer_MFP -128 40 IDE10221-ENG125860-Audio Management Input Gain Generation 2-Phone_Ringer_OB -3 40 IDE10221-ENG125858-Audio Management Input Gain Generation 2-Phone_Voice -128 40 IDE10221-ENG125842-Audio Management Input Gain Generation 2-TA_Tuner_FM -128 40 IDE10221-ENG125850-Audio Management Input Gain Generation 2-Tone_Beep -128 40 IDE10221-ENG125853-Audio Management Input Gain Generation 2-Tone_Messaging -128 40 IDE10221-ENG125852-Audio Management Input Gain Generation 2-Tone_Touchscreen 6 40 IDE10221-ENG125851-Audio Management Input Gain Generation 2-Tone_Warning -128 40 IDE10221-ENG125856-Audio Management Input Gain Generation 2-TTS_Nav -128 40 IDE10221-ENG125857-Audio Management Input Gain Generation 2-TTS_SDS -128 40 IDE10221-ENG125845-Audio Management Input Gain Generation 2-Tuner_Online -128 40 IDE10221-ENG125849-Audio Management Input Gain Generation 2-Tuner_Personal -128 40 IDE10221-ENG125835-Audio Management Input Gain Generation 2-Tuner_TI -128 40 IDE10221-ENG125861-Audio Management Input Gain Generation 2-TV_AV_IN -128 40 IDE10480-MAS10741-Interface for external media: activation-Connection 1 activated 4 IDE10480-MAS10742-Interface for external media: activation-Connection 2 activated 4 IDE10480-MAS10743-Interface for external media: activation-Connection 3 not activated 4 IDE10480-MAS10744-Interface for external media: activation-Connection 4 not activated 4 IDE10604-Menu entries for mobile online services activated 1 IDE11104-ENG127502-FM tuner: mono/stereo setting-l_hf_stereo_lower_threshold 37 dBµV 3 IDE11104-ENG127503-FM tuner: mono/stereo setting-l_nf_max_stereo_channel_separation 32 dB 3 IDE11104-ENG127504-FM tuner: mono/stereo setting-t_hysteresis_mono_to_stereo 15.0 s 3 IDE11105-Brand-specific display of connect application 256 IDE11122-Country identification: country of sale HMI NL 2 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152487-Surroundings display: virtual camera positions-focallength 4294967295 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152457-Surroundings display: virtual camera positions-Pitchangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG152445-Surroundings display: virtual camera positions-Rollangle 65535 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG147432-Surroundings display: virtual camera positions-xpos 32767 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG152451-Surroundings display: virtual camera positions-Yawangle 65535 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147433-Surroundings display: virtual camera positions-ypos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11153-ENG147434-Surroundings display: virtual camera positions-zpos 32767 330 IDE11502-ENG127601-Locked menu contents-FB_CAR_0 non_blocked 21 IDE11502-ENG127602-Locked menu contents-FB_CAR_1 non_blocked 21 IDE11502-ENG127611-Locked menu contents-FB_CAR_10 non_blocked 21 IDE11502-ENG127612-Locked menu contents-FB_CAR_11 non_blocked 21 IDE11502-ENG127613-Locked menu contents-FB_CAR_12 non_blocked 21 IDE11502-ENG127614-Locked menu contents-FB_CAR_13 non_blocked 21 IDE11502-ENG127615-Locked menu contents-FB_CAR_14 non_blocked 21 IDE11502-ENG127616-Locked menu contents-FB_CAR_15 non_blocked 21 IDE11502-ENG127617-Locked menu contents-FB_CAR_16 non_blocked 21 IDE11502-ENG127618-Locked menu contents-FB_CAR_17 non_blocked 21 IDE11502-ENG127619-Locked menu contents-FB_CAR_18 non_blocked 21 IDE11502-ENG127620-Locked menu contents-FB_CAR_19 non_blocked 21 IDE11502-ENG127603-Locked menu contents-FB_CAR_2 non_blocked 21 IDE11502-ENG127621-Locked menu contents-FB_CAR_20 non_blocked 21 IDE11502-ENG127622-Locked menu contents-FB_CAR_21 non_blocked 21 IDE11502-ENG127623-Locked menu contents-FB_CAR_22 non_blocked 21 IDE11502-ENG127624-Locked menu contents-FB_CAR_23 non_blocked 21 IDE11502-ENG127604-Locked menu contents-FB_CAR_3 non_blocked 21 IDE11502-ENG127605-Locked menu contents-FB_CAR_4 non_blocked 21 IDE11502-ENG127606-Locked menu contents-FB_CAR_5 non_blocked 21 IDE11502-ENG127607-Locked menu contents-FB_CAR_6 non_blocked 21 IDE11502-ENG127608-Locked menu contents-FB_CAR_7 non_blocked 21 IDE11502-ENG127609-Locked menu contents-FB_CAR_8 non_blocked 21 IDE11502-ENG127610-Locked menu contents-FB_CAR_9 non_blocked 21 IDE11502-ENG127521-Locked menu contents-FB_MEDIA_0 non_blocked 21 IDE11502-ENG127522-Locked menu contents-FB_MEDIA_1 non_blocked 21 IDE11502-ENG127531-Locked menu contents-FB_MEDIA_10 non_blocked 21 IDE11502-ENG127532-Locked menu contents-FB_MEDIA_11 non_blocked 21 IDE11502-ENG127533-Locked menu contents-FB_MEDIA_12 non_blocked 21 IDE11502-ENG127534-Locked menu contents-FB_MEDIA_13 non_blocked 21 IDE11502-ENG127535-Locked menu contents-FB_MEDIA_14 non_blocked 21 IDE11502-ENG127536-Locked menu contents-FB_MEDIA_15 non_blocked 21 IDE11502-ENG127537-Locked menu contents-FB_MEDIA_16 non_blocked 21 IDE11502-ENG127538-Locked menu contents-FB_MEDIA_17 non_blocked 21 IDE11502-ENG127539-Locked menu contents-FB_MEDIA_18 non_blocked 21 IDE11502-ENG127540-Locked menu contents-FB_MEDIA_19 non_blocked 21 IDE11502-ENG127523-Locked menu contents-FB_MEDIA_2 non_blocked 21 IDE11502-ENG127541-Locked menu contents-FB_MEDIA_20 non_blocked 21 IDE11502-ENG127542-Locked menu contents-FB_MEDIA_21 non_blocked 21 IDE11502-ENG127543-Locked menu contents-FB_MEDIA_22 non_blocked 21 IDE11502-ENG127544-Locked menu contents-FB_MEDIA_23 non_blocked 21 IDE11502-ENG127524-Locked menu contents-FB_MEDIA_3 non_blocked 21 IDE11502-ENG127525-Locked menu contents-FB_MEDIA_4 non_blocked 21 IDE11502-ENG127526-Locked menu contents-FB_MEDIA_5 non_blocked 21 IDE11502-ENG127527-Locked menu contents-FB_MEDIA_6 non_blocked 21 IDE11502-ENG127528-Locked menu contents-FB_MEDIA_7 non_blocked 21 IDE11502-ENG127529-Locked menu contents-FB_MEDIA_8 non_blocked 21 IDE11502-ENG127530-Locked menu contents-FB_MEDIA_9 non_blocked 21 IDE11502-ENG127625-Locked menu contents-FB_MISC_0 non_blocked 21 IDE11502-ENG127626-Locked menu contents-FB_MISC_1 non_blocked 21 IDE11502-ENG127635-Locked menu contents-FB_MISC_10 non_blocked 21 IDE11502-ENG127636-Locked menu contents-FB_MISC_11 non_blocked 21 IDE11502-ENG127637-Locked menu contents-FB_MISC_12 non_blocked 21 IDE11502-ENG127638-Locked menu contents-FB_MISC_13 non_blocked 21 IDE11502-ENG127639-Locked menu contents-FB_MISC_14 non_blocked 21 IDE11502-ENG127640-Locked menu contents-FB_MISC_15 non_blocked 21 IDE11502-ENG127641-Locked menu contents-FB_MISC_16 non_blocked 21 IDE11502-ENG127642-Locked menu contents-FB_MISC_17 non_blocked 21 IDE11502-ENG127643-Locked menu contents-FB_MISC_18 non_blocked 21 IDE11502-ENG127644-Locked menu contents-FB_MISC_19 non_blocked 21 IDE11502-ENG127627-Locked menu contents-FB_MISC_2 non_blocked 21 IDE11502-ENG127645-Locked menu contents-FB_MISC_20 non_blocked 21 IDE11502-ENG127646-Locked menu contents-FB_MISC_21 non_blocked 21 IDE11502-ENG127647-Locked menu contents-FB_MISC_22 non_blocked 21 IDE11502-ENG127648-Locked menu contents-FB_MISC_23 non_blocked 21 IDE11502-ENG127649-Locked menu contents-FB_MISC_24 non_blocked 21 IDE11502-ENG127650-Locked menu contents-FB_MISC_25 non_blocked 21 IDE11502-ENG127651-Locked menu contents-FB_MISC_26 non_blocked 21 IDE11502-ENG127652-Locked menu contents-FB_MISC_27 non_blocked 21 IDE11502-ENG127653-Locked menu contents-FB_MISC_28 non_blocked 21 IDE11502-ENG127654-Locked menu contents-FB_MISC_29 non_blocked 21 IDE11502-ENG127628-Locked menu contents-FB_MISC_3 non_blocked 21 IDE11502-ENG127655-Locked menu contents-FB_MISC_30 non_blocked 21 IDE11502-ENG127656-Locked menu contents-FB_MISC_31 non_blocked 21 IDE11502-ENG127657-Locked menu contents-FB_MISC_32 non_blocked 21 IDE11502-ENG127658-Locked menu contents-FB_MISC_33 non_blocked 21 IDE11502-ENG127659-Locked menu contents-FB_MISC_34 non_blocked 21 IDE11502-ENG127660-Locked menu contents-FB_MISC_35 non_blocked 21 IDE11502-ENG127661-Locked menu contents-FB_MISC_36 non_blocked 21 IDE11502-ENG127662-Locked menu contents-FB_MISC_37 non_blocked 21 IDE11502-ENG127663-Locked menu contents-FB_MISC_38 non_blocked 21 IDE11502-ENG127664-Locked menu contents-FB_MISC_39 non_blocked 21 IDE11502-ENG127629-Locked menu contents-FB_MISC_4 non_blocked 21 IDE11502-ENG127665-Locked menu contents-FB_MISC_40 non_blocked 21 IDE11502-ENG127666-Locked menu contents-FB_MISC_41 non_blocked 21 IDE11502-ENG127667-Locked menu contents-FB_MISC_42 non_blocked 21 IDE11502-ENG127668-Locked menu contents-FB_MISC_43 non_blocked 21 IDE11502-ENG127669-Locked menu contents-FB_MISC_44 non_blocked 21 IDE11502-ENG127670-Locked menu contents-FB_MISC_45 non_blocked 21 IDE11502-ENG127671-Locked menu contents-FB_MISC_46 non_blocked 21 IDE11502-ENG127672-Locked menu contents-FB_MISC_47 non_blocked 21 IDE11502-ENG127630-Locked menu contents-FB_MISC_5 non_blocked 21 IDE11502-ENG127631-Locked menu contents-FB_MISC_6 non_blocked 21 IDE11502-ENG127632-Locked menu contents-FB_MISC_7 non_blocked 21 IDE11502-ENG127633-Locked menu contents-FB_MISC_8 non_blocked 21 IDE11502-ENG127634-Locked menu contents-FB_MISC_9 non_blocked 21 IDE11502-ENG127561-Locked menu contents-FB_NAV_0 non_blocked 21 IDE11502-ENG127562-Locked menu contents-FB_NAV_1 non_blocked 21 IDE11502-ENG127571-Locked menu contents-FB_NAV_10 non_blocked 21 IDE11502-ENG127572-Locked menu contents-FB_NAV_11 non_blocked 21 IDE11502-ENG127573-Locked menu contents-FB_NAV_12 non_blocked 21 IDE11502-ENG127574-Locked menu contents-FB_NAV_13 non_blocked 21 IDE11502-ENG127575-Locked menu contents-FB_NAV_14 non_blocked 21 IDE11502-ENG127576-Locked menu contents-FB_NAV_15 non_blocked 21 IDE11502-ENG127577-Locked menu contents-FB_NAV_16 non_blocked 21 IDE11502-ENG127578-Locked menu contents-FB_NAV_17 non_blocked 21 IDE11502-ENG127579-Locked menu contents-FB_NAV_18 non_blocked 21 IDE11502-ENG127580-Locked menu contents-FB_NAV_19 non_blocked 21 IDE11502-ENG127563-Locked menu contents-FB_NAV_2 non_blocked 21 IDE11502-ENG127581-Locked menu contents-FB_NAV_20 non_blocked 21 IDE11502-ENG127582-Locked menu contents-FB_NAV_21 non_blocked 21 IDE11502-ENG127583-Locked menu contents-FB_NAV_22 non_blocked 21 IDE11502-ENG127584-Locked menu contents-FB_NAV_23 non_blocked 21 IDE11502-ENG127585-Locked menu contents-FB_NAV_24 non_blocked 21 IDE11502-ENG127586-Locked menu contents-FB_NAV_25 non_blocked 21 IDE11502-ENG127587-Locked menu contents-FB_NAV_26 non_blocked 21 IDE11502-ENG127588-Locked menu contents-FB_NAV_27 non_blocked 21 IDE11502-ENG127589-Locked menu contents-FB_NAV_28 non_blocked 21 IDE11502-ENG127590-Locked menu contents-FB_NAV_29 non_blocked 21 IDE11502-ENG127564-Locked menu contents-FB_NAV_3 non_blocked 21 IDE11502-ENG127591-Locked menu contents-FB_NAV_30 non_blocked 21 IDE11502-ENG127592-Locked menu contents-FB_NAV_31 non_blocked 21 IDE11502-ENG127593-Locked menu contents-FB_NAV_32 non_blocked 21 IDE11502-ENG127594-Locked menu contents-FB_NAV_33 non_blocked 21 IDE11502-ENG127595-Locked menu contents-FB_NAV_34 non_blocked 21 IDE11502-ENG127596-Locked menu contents-FB_NAV_35 non_blocked 21 IDE11502-ENG127597-Locked menu contents-FB_NAV_36 non_blocked 21 IDE11502-ENG127598-Locked menu contents-FB_NAV_37 non_blocked 21 IDE11502-ENG127599-Locked menu contents-FB_NAV_38 non_blocked 21 IDE11502-ENG127600-Locked menu contents-FB_NAV_39 non_blocked 21 IDE11502-ENG127565-Locked menu contents-FB_NAV_4 non_blocked 21 IDE11502-ENG127566-Locked menu contents-FB_NAV_5 non_blocked 21 IDE11502-ENG127567-Locked menu contents-FB_NAV_6 non_blocked 21 IDE11502-ENG127568-Locked menu contents-FB_NAV_7 non_blocked 21 IDE11502-ENG127569-Locked menu contents-FB_NAV_8 non_blocked 21 IDE11502-ENG127570-Locked menu contents-FB_NAV_9 non_blocked 21 IDE11502-ENG127545-Locked menu contents-FB_PHONE_0 non_blocked 21 IDE11502-ENG127546-Locked menu contents-FB_PHONE_1 non_blocked 21 IDE11502-ENG127555-Locked menu contents-FB_PHONE_10 non_blocked 21 IDE11502-ENG127556-Locked menu contents-FB_PHONE_11 non_blocked 21 IDE11502-ENG127557-Locked menu contents-FB_PHONE_12 non_blocked 21 IDE11502-ENG127558-Locked menu contents-FB_PHONE_13 non_blocked 21 IDE11502-ENG127559-Locked menu contents-FB_PHONE_14 non_blocked 21 IDE11502-ENG127560-Locked menu contents-FB_PHONE_15 non_blocked 21 IDE11502-ENG127547-Locked menu contents-FB_PHONE_2 non_blocked 21 IDE11502-ENG127548-Locked menu contents-FB_PHONE_3 non_blocked 21 IDE11502-ENG127549-Locked menu contents-FB_PHONE_4 non_blocked 21 IDE11502-ENG127550-Locked menu contents-FB_PHONE_5 non_blocked 21 IDE11502-ENG127551-Locked menu contents-FB_PHONE_6 non_blocked 21 IDE11502-ENG127552-Locked menu contents-FB_PHONE_7 non_blocked 21 IDE11502-ENG127553-Locked menu contents-FB_PHONE_8 non_blocked 21 IDE11502-ENG127554-Locked menu contents-FB_PHONE_9 non_blocked 21 IDE11502-ENG127505-Locked menu contents-FB_TUNER_0 non_blocked 21 IDE11502-ENG127506-Locked menu contents-FB_TUNER_1 non_blocked 21 IDE11502-ENG127515-Locked menu contents-FB_TUNER_10 non_blocked 21 IDE11502-ENG127516-Locked menu contents-FB_TUNER_11 non_blocked 21 IDE11502-ENG127517-Locked menu contents-FB_TUNER_12 non_blocked 21 IDE11502-ENG127518-Locked menu contents-FB_TUNER_13 non_blocked 21 IDE11502-ENG127519-Locked menu contents-FB_TUNER_14 non_blocked 21 IDE11502-ENG127520-Locked menu contents-FB_TUNER_15 non_blocked 21 IDE11502-ENG127507-Locked menu contents-FB_TUNER_2 non_blocked 21 IDE11502-ENG127508-Locked menu contents-FB_TUNER_3 non_blocked 21 IDE11502-ENG127509-Locked menu contents-FB_TUNER_4 non_blocked 21 IDE11502-ENG127510-Locked menu contents-FB_TUNER_5 non_blocked 21 IDE11502-ENG127511-Locked menu contents-FB_TUNER_6 non_blocked 21 IDE11502-ENG127512-Locked menu contents-FB_TUNER_7 non_blocked 21 IDE11502-ENG127513-Locked menu contents-FB_TUNER_8 non_blocked 21 IDE11502-ENG127514-Locked menu contents-FB_TUNER_9 non_blocked 21 IDE11524-ENG249835-Vehicle function list BAP 2nd generation: expansion-chassis_control_0x57 not activated 192 IDE11524-ENG249836-Vehicle function list BAP 2nd generation: expansion-chassis_control_0x57_msg_bus not activated 192 IDE11524-ENG142156-Vehicle function list BAP 2nd generation: expansion-climate_mastet_0x42 not activated 192 IDE11524-ENG142157-Vehicle function list BAP 2nd generation: expansion-climate_mastet_0x42_msg_bus not activated 192 IDE11524-ENG142158-Vehicle function list BAP 2nd generation: expansion-connection_manager_0x47 not activated 192 IDE11524-ENG142159-Vehicle function list BAP 2nd generation: expansion-connection_manager_0x47_msg_bus not activated 192 IDE11524-ENG249837-Vehicle function list BAP 2nd generation: expansion-convertibleTop_0x6C not activated 192 IDE11524-ENG249838-Vehicle function list BAP 2nd generation: expansion-convertibleTop_0x6C_msg_bus not activated 192 IDE11524-ENG152529-Vehicle function list BAP 2nd generation: expansion-daf_profile_0x51 not activated 192 IDE11524-ENG152530-Vehicle function list BAP 2nd generation: expansion-daf_profile_0x51_msg_bus not activated 192 IDE11524-ENG137043-Vehicle function list BAP 2nd generation: expansion-display_configuration_0x45 not activated 192 IDE11524-ENG137044-Vehicle function list BAP 2nd generation: expansion-display_configuration_0x45_msg_bus not activated 192 IDE11524-ENG185772-Vehicle function list BAP 2nd generation: expansion-engine_functions_0x5D not activated 192 IDE11524-ENG185773-Vehicle function list BAP 2nd generation: expansion-engine_functions_0x5D_msg_bus not activated 192 IDE11524-ENG142168-Vehicle function list BAP 2nd generation: expansion-fas_profile_0x4D not activated 192 IDE11524-ENG142169-Vehicle function list BAP 2nd generation: expansion-fas_profile_0x4D_msg_bus not activated 192 IDE11524-ENG142154-Vehicle function list BAP 2nd generation: expansion-front_traffic_assist_0x41 not activated 192 IDE11524-ENG142155-Vehicle function list BAP 2nd generation: expansion-front_traffic_assist_0x41_msg_bus not activated 192 IDE11524-ENG152535-Vehicle function list BAP 2nd generation: expansion-infotainmentsettings_profile_0x50 not activated 192 IDE11524-ENG152536-Vehicle function list BAP 2nd generation: expansion-infotainmentsettings_profile_0x50_msg_bus not activated 192 IDE11524-ENG248719-Vehicle function list BAP 2nd generation: expansion-ITM_0x65 not activated 192 IDE11524-ENG248720-Vehicle function list BAP 2nd generation: expansion-ITM_0x65_msg_bus not activated 192 IDE11524-ENG249902-Vehicle function list BAP 2nd generation: expansion-lift_0x64 not activated 192 IDE11524-ENG249903-Vehicle function list BAP 2nd generation: expansion-lift_0x64_msg_bus not activated 192 IDE11524-ENG185787-Vehicle function list BAP 2nd generation: expansion-mascot_0x83 not activated 192 IDE11524-ENG185788-Vehicle function list BAP 2nd generation: expansion-mascot_0x83_msg_bus not activated 192 IDE11524-ENG152569-Vehicle function list BAP 2nd generation: expansion-remote_services_profile_0x4E not activated 192 IDE11524-ENG152570-Vehicle function list BAP 2nd generation: expansion-remote_services_profile_0x4E_msg_bus not activated 192 IDE11524-ENG139202-Vehicle function list BAP 2nd generation: expansion-Soundcontrol_0x44 not activated 192 IDE11524-ENG139203-Vehicle function list BAP 2nd generation: expansion-Soundcontrol_0x44_msg_bus not activated 192 IDE11524-ENG127678-Vehicle function list BAP 2nd generation: expansion-spoiler_0x40 not activated 192 IDE11524-ENG127679-Vehicle function list BAP 2nd generation: expansion-spoiler_0x40_msg_bus not activated 192 IDE11524-ENG142162-Vehicle function list BAP 2nd generation: expansion-statistic_0x4A not activated 192 IDE11524-ENG142163-Vehicle function list BAP 2nd generation: expansion-statistic_0x4A_msg_bus not activated 192 IDE11524-ENG142164-Vehicle function list BAP 2nd generation: expansion-sunroof_front_0x4B not activated 192 IDE11524-ENG142165-Vehicle function list BAP 2nd generation: expansion-sunroof_front_0x4B_msg_bus not activated 192 IDE11524-ENG142166-Vehicle function list BAP 2nd generation: expansion-sunroof_rear_0x4C not activated 192 IDE11524-ENG142167-Vehicle function list BAP 2nd generation: expansion-sunroof_rear_0x4C_msg_bus not activated 192 IDE11524-ENG185817-Vehicle function list BAP 2nd generation: expansion-vas_0x54 not activated 192 IDE11524-ENG185818-Vehicle function list BAP 2nd generation: expansion-vas_0x54_msg_bus not activated 192 IDE11524-ENG142160-Vehicle function list BAP 2nd generation: expansion-wireless_charging_0x48 not activated 192 IDE11524-ENG142161-Vehicle function list BAP 2nd generation: expansion-wireless_charging_0x48_msg_bus not activated 192 IDE11638-Bluetooth Audio Codec FF 1 IDE12353-Configuration of traffic light online functions On 1 IDE12434-ENG249906-Vehicle menu operation: second generation: extension-menu_chassis_control not activated 60 IDE12434-ENG249907-Vehicle menu operation: second generation: extension-menu_chassis_control_after_disclaimer not activated 60 IDE12434-ENG249908-Vehicle menu operation: second generation: extension-menu_chassis_control_clamp_15_off not activated 60 IDE12434-ENG249909-Vehicle menu operation: second generation: extension-menu_chassis_control_over_threshold_high not activated 60 IDE12434-ENG249910-Vehicle menu operation: second generation: extension-menu_chassis_control_stillstand not activated 60 IDE12434-ENG152495-Vehicle menu operation: second generation: extension-menu_connection_manager not activated 60 IDE12434-ENG152499-Vehicle menu operation: second generation: extension-menu_connection_manager_after_disclaimer not activated 60 IDE12434-ENG152496-Vehicle menu operation: second generation: extension-menu_connection_manager_clamp_15_off not activated 60 IDE12434-ENG152497-Vehicle menu operation: second generation: extension-menu_connection_manager_over_threshold_high not activated 60 IDE12434-ENG152498-Vehicle menu operation: second generation: extension-menu_connection_manager_standstill not activated 60 IDE12434-ENG249911-Vehicle menu operation: second generation: extension-menu_convertible_top not activated 60 IDE12434-ENG249912-Vehicle menu operation: second generation: extension-menu_convertible_top_after_disclaimer not activated 60 IDE12434-ENG249913-Vehicle menu operation: second generation: extension-menu_convertible_top_clamp_15_off not activated 60 IDE12434-ENG249914-Vehicle menu operation: second generation: extension-menu_convertible_top_over_threshold_high not activated 60 IDE12434-ENG249915-Vehicle menu operation: second generation: extension-menu_convertible_top_stillstand not activated 60 IDE12434-ENG152548-Vehicle menu operation: second generation: extension-menu_daf_profile not activated 60 IDE12434-ENG152549-Vehicle menu operation: second generation: extension-menu_daf_profile_after_disclaimer not activated 60 IDE12434-ENG152550-Vehicle menu operation: second generation: extension-menu_daf_profile_clamp_15_off not activated 60 IDE12434-ENG152551-Vehicle menu operation: second generation: extension-menu_daf_profile_over_threshold_high not activated 60 IDE12434-ENG152552-Vehicle menu operation: second generation: extension-menu_daf_profile_stillstand not activated 60 IDE12434-ENG185793-Vehicle menu operation: second generation: extension-menu_engine_functions not activated 60 IDE12434-ENG185794-Vehicle menu operation: second generation: extension-menu_engine_functions_after_disclaimer not activated 60 IDE12434-ENG185795-Vehicle menu operation: second generation: extension-menu_engine_functions_clamp_15_off not activated 60 IDE12434-ENG185796-Vehicle menu operation: second generation: extension-menu_engine_functions_over_threshold_high not activated 60 IDE12434-ENG185797-Vehicle menu operation: second generation: extension-menu_engine_functions_stillstand not activated 60 IDE12434-ENG152515-Vehicle menu operation: second generation: extension-menu_fas_profile not activated 60 IDE12434-ENG152519-Vehicle menu operation: second generation: extension-menu_fas_profile_after_disclaimer not activated 60 IDE12434-ENG152516-Vehicle menu operation: second generation: extension-menu_fas_profile_clamp_15_off not activated 60 IDE12434-ENG152517-Vehicle menu operation: second generation: extension-menu_fas_profile_over_threshold_high not activated 60 IDE12434-ENG152518-Vehicle menu operation: second generation: extension-menu_fas_profile_standstill not activated 60 IDE12434-ENG185798-Vehicle menu operation: second generation: extension-menu_fod not activated 60 IDE12434-ENG185799-Vehicle menu operation: second generation: extension-menu_fod_after_disclaimer not activated 60 IDE12434-ENG185800-Vehicle menu operation: second generation: extension-menu_fod_clamp_15_off not activated 60 IDE12434-ENG185801-Vehicle menu operation: second generation: extension-menu_fod_over_threshold_high not activated 60 IDE12434-ENG185802-Vehicle menu operation: second generation: extension-menu_fod_stillstand not activated 60 IDE12434-ENG248744-Vehicle menu operation: second generation: extension-menu_ITM not activated 60 IDE12434-ENG248745-Vehicle menu operation: second generation: extension-menu_ITM_after_disclaimer not activated 60 IDE12434-ENG248746-Vehicle menu operation: second generation: extension-menu_ITM_clamp_15_off not activated 60 IDE12434-ENG248747-Vehicle menu operation: second generation: extension-menu_ITM_over_threshold_high not activated 60 IDE12434-ENG248748-Vehicle menu operation: second generation: extension-menu_ITM_stillstand not activated 60 IDE12434-ENG249916-Vehicle menu operation: second generation: extension-menu_lift not activated 60 IDE12434-ENG249917-Vehicle menu operation: second generation: extension-menu_lift_after_disclaimer not activated 60 IDE12434-ENG249918-Vehicle menu operation: second generation: extension-menu_lift_clamp_15_off not activated 60 IDE12434-ENG249919-Vehicle menu operation: second generation: extension-menu_lift_over_threshold_high not activated 60 IDE12434-ENG249920-Vehicle menu operation: second generation: extension-menu_lift_stillstand not activated 60 IDE12434-ENG184478-Vehicle menu operation: second generation: extension-menu_mascot not activated 60 IDE12434-ENG184479-Vehicle menu operation: second generation: extension-menu_mascot_after_disclaimer not activated 60 IDE12434-ENG184480-Vehicle menu operation: second generation: extension-menu_mascot_clamp_15_off not activated 60 IDE12434-ENG184481-Vehicle menu operation: second generation: extension-menu_mascot_over_threshold_high not activated 60 IDE12434-ENG184482-Vehicle menu operation: second generation: extension-menu_mascot_stillstand not activated 60 IDE12434-ENG152562-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile not activated 60 IDE12434-ENG152563-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_after_disclaimer not activated 60 IDE12434-ENG152564-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_clamp_15_off not activated 60 IDE12434-ENG152565-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_over_threshold_high not activated 60 IDE12434-ENG152566-Vehicle menu operation: second generation: extension-menu_mobile_device_key_profile_stillstand not activated 60 IDE12434-ENG152505-Vehicle menu operation: second generation: extension-menu_statistic not activated 60 IDE12434-ENG152509-Vehicle menu operation: second generation: extension-menu_statistic_after_disclaimer not activated 60 IDE12434-ENG152506-Vehicle menu operation: second generation: extension-menu_statistic_clamp_15_off not activated 60 IDE12434-ENG152507-Vehicle menu operation: second generation: extension-menu_statistic_over_threshold_high not activated 60 IDE12434-ENG152508-Vehicle menu operation: second generation: extension-menu_statistic_standstill not activated 60 IDE12434-ENG152510-Vehicle menu operation: second generation: extension-menu_sunroof not activated 60 IDE12434-ENG152514-Vehicle menu operation: second generation: extension-menu_sunroof_after_disclaimer not activated 60 IDE12434-ENG152511-Vehicle menu operation: second generation: extension-menu_sunroof_clamp_15_off not activated 60 IDE12434-ENG152512-Vehicle menu operation: second generation: extension-menu_sunroof_over_threshold_high not activated 60 IDE12434-ENG152513-Vehicle menu operation: second generation: extension-menu_sunroof_standstill not activated 60 IDE12434-ENG185803-Vehicle menu operation: second generation: extension-menu_vas not activated 60 IDE12434-ENG185804-Vehicle menu operation: second generation: extension-menu_vas_after_disclaimer not activated 60 IDE12434-ENG185805-Vehicle menu operation: second generation: extension-menu_vas_clamp_15_off not activated 60 IDE12434-ENG185806-Vehicle menu operation: second generation: extension-menu_vas_over_threshold_high not activated 60 IDE12434-ENG185807-Vehicle menu operation: second generation: extension-menu_vas_stillstand not activated 60 IDE12434-ENG152500-Vehicle menu operation: second generation: extension-menu_wireless_charging not activated 60 IDE12434-ENG152504-Vehicle menu operation: second generation: extension-menu_wireless_charging_after_disclaimer not activated 60 IDE12434-ENG152501-Vehicle menu operation: second generation: extension-menu_wireless_charging_clamp_15_off not activated 60 IDE12434-ENG152502-Vehicle menu operation: second generation: extension-menu_wireless_charging_over_threshold_high not activated 60 IDE12434-ENG152503-Vehicle menu operation: second generation: extension-menu_wireless_charging_standstill not activated 60 IDE13183-Deactivation/activation of the pop-up for active tracking services 00 00 00 00 4 MAS00951-Bluetooth On 1 MAS02809-MAS02870-Check tone frequency-High note frequency range 4000 Hz 6 MAS02809-MAS02871-Check tone frequency-Medium note frequency range 1000 Hz 6 MAS02809-MAS02872-Check tone frequency-Low note frequency range 100 Hz 6 MAS03782-WLAN On 1 ENG126140-ENG117811-Audio_Management_Audio_Delay_Lines_Gen2-Amplifier_Delay_On_Off OFF 12 ENG126140-ENG117813-Audio_Management_Audio_Delay_Lines_Gen2-Amplifier_Delay_Time 0.00 ms 12 ENG126140-ENG126188-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_Delay_On_Off OFF 12 ENG126140-ENG126189-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_Delay_Time 0.00 ms 12 ENG126140-ENG126190-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_wireless_Delay_On_Off OFF 12 ENG126140-ENG126191-Audio_Management_Audio_Delay_Lines_Gen2-Headphone_wireless_Delay_Time 0.00 ms 12 ENG126140-ENG117810-Audio_Management_Audio_Delay_Lines_Gen2-Main_Unit_Delay_On_Off OFF 12 ENG126140-ENG117812-Audio_Management_Audio_Delay_Lines_Gen2-Main_Unit_Delay_Time 0.00 ms 12 ENG117920-Audio_Managment_Soundset_Menu OFF 1 ENG117917-BAP_Debug_Mode_Release not_released 1 ENG122227-ENG125811-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization not activated 60 ENG122227-ENG125814-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_after_disclaimer not activated 60 ENG122227-ENG126995-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_clamp_15_off not activated 60 ENG122227-ENG125812-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_over_threshold_high not activated 60 ENG122227-ENG125813-Car_Function_Adaptations_Gen2-menu_auxiliary_climatization_standstill not activated 60 ENG122227-ENG152538-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation not activated 60 ENG122227-ENG152539-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_after_disclaimer not activated 60 ENG122227-ENG152540-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_clamp_15_off not activated 60 ENG122227-ENG152541-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_over_threshold_high not activated 60 ENG122227-ENG152542-Car_Function_Adaptations_Gen2-menu_auxiliary_ventilation_standstill not activated 60 ENG122227-ENG152543-Car_Function_Adaptations_Gen2-menu_crossroad_assistent not activated 60 ENG122227-ENG152544-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_after_disclaimer not activated 60 ENG122227-ENG152545-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_clamp_15_off not activated 60 ENG122227-ENG152546-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_over_threshold_high not activated 60 ENG122227-ENG152547-Car_Function_Adaptations_Gen2-menu_crossroad_assistent_standstill not activated 60 ENG122227-ENG117486-Car_Function_Adaptations_Gen2-menu_display_ACC activated 60 ENG122227-ENG117490-Car_Function_Adaptations_Gen2-menu_display_ACC_after_disclaimer not activated 60 ENG122227-ENG117487-Car_Function_Adaptations_Gen2-menu_display_ACC_operation_clamp_15_off not activated 60 ENG122227-ENG117488-Car_Function_Adaptations_Gen2-menu_display_ACC_over_threshold_high activated 60 ENG122227-ENG117489-Car_Function_Adaptations_Gen2-menu_display_ACC_standstill not activated 60 ENG122227-ENG117646-Car_Function_Adaptations_Gen2-menu_display_adaptive_key not activated 60 ENG122227-ENG117650-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_after_disclaimer not activated 60 ENG122227-ENG117647-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_clamp_15_off not activated 60 ENG122227-ENG117648-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_over_threshold_high not activated 60 ENG122227-ENG117649-Car_Function_Adaptations_Gen2-menu_display_adaptive_key_standstill not activated 60 ENG122227-ENG126152-Car_Function_Adaptations_Gen2-menu_display_Adblue not activated 60 ENG122227-ENG126155-Car_Function_Adaptations_Gen2-menu_display_Adblue_after_disclaimer not activated 60 ENG122227-ENG127002-Car_Function_Adaptations_Gen2-menu_display_Adblue_clamp_15_off not activated 60 ENG122227-ENG126153-Car_Function_Adaptations_Gen2-menu_display_Adblue_over_threshold_high not activated 60 ENG122227-ENG126154-Car_Function_Adaptations_Gen2-menu_display_Adblue_standstill not activated 60 ENG122227-ENG117591-Car_Function_Adaptations_Gen2-menu_display_air_damper not activated 60 ENG122227-ENG117595-Car_Function_Adaptations_Gen2-menu_display_air_damper_after_disclaimer not activated 60 ENG122227-ENG117592-Car_Function_Adaptations_Gen2-menu_display_air_damper_clamp_15_off not activated 60 ENG122227-ENG117593-Car_Function_Adaptations_Gen2-menu_display_air_damper_over_threshold_high not activated 60 ENG122227-ENG117594-Car_Function_Adaptations_Gen2-menu_display_air_damper_standstill not activated 60 ENG122227-ENG117491-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination activated 60 ENG122227-ENG117495-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_after_disclaimer not activated 60 ENG122227-ENG117492-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_clamp_15_off not activated 60 ENG122227-ENG117493-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_over_threshold_high activated 60 ENG122227-ENG117494-Car_Function_Adaptations_Gen2-menu_display_ambient_illumination_standstill not activated 60 ENG122227-ENG122296-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope not activated 60 ENG122227-ENG122300-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_after_disclaimer not activated 60 ENG122227-ENG122297-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_clamp_15_off not activated 60 ENG122227-ENG122298-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_over_threshold_high not activated 60 ENG122227-ENG122299-Car_Function_Adaptations_Gen2-menu_display_angle_of_slope_standstill not activated 60 ENG122227-ENG117641-Car_Function_Adaptations_Gen2-menu_display_attention_identification not activated 60 ENG122227-ENG117645-Car_Function_Adaptations_Gen2-menu_display_attention_identification_after_disclaimer not activated 60 ENG122227-ENG117642-Car_Function_Adaptations_Gen2-menu_display_attention_identification_clamp_15_off not activated 60 ENG122227-ENG117643-Car_Function_Adaptations_Gen2-menu_display_attention_identification_over_threshold_high not activated 60 ENG122227-ENG117644-Car_Function_Adaptations_Gen2-menu_display_attention_identification_standstill not activated 60 ENG122227-ENG117531-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating not activated 60 ENG122227-ENG117535-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_after_disclaimer not activated 60 ENG122227-ENG117532-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_clamp_15_off not activated 60 ENG122227-ENG117533-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_over_threshold_high not activated 60 ENG122227-ENG117534-Car_Function_Adaptations_Gen2-menu_display_auxiliary_heating_standstill not activated 60 ENG122227-ENG117501-Car_Function_Adaptations_Gen2-menu_display_awv activated 60 ENG122227-ENG117505-Car_Function_Adaptations_Gen2-menu_display_awv_after_disclaimer not activated 60 ENG122227-ENG117502-Car_Function_Adaptations_Gen2-menu_display_awv_clamp_15_off not activated 60 ENG122227-ENG117503-Car_Function_Adaptations_Gen2-menu_display_awv_over_threshold_high activated 60 ENG122227-ENG117504-Car_Function_Adaptations_Gen2-menu_display_awv_standstill not activated 60 ENG122227-ENG122301-Car_Function_Adaptations_Gen2-menu_display_battery_management not activated 60 ENG122227-ENG122305-Car_Function_Adaptations_Gen2-menu_display_battery_management_after_disclaimer not activated 60 ENG122227-ENG122302-Car_Function_Adaptations_Gen2-menu_display_battery_management_clamp_15_off not activated 60 ENG122227-ENG122303-Car_Function_Adaptations_Gen2-menu_display_battery_management_over_threshold_high not activated 60 ENG122227-ENG122304-Car_Function_Adaptations_Gen2-menu_display_battery_management_standstill not activated 60 ENG122227-ENG117666-Car_Function_Adaptations_Gen2-menu_display_BCmE activated 60 ENG122227-ENG117670-Car_Function_Adaptations_Gen2-menu_display_BCmE_after_disclaimer not activated 60 ENG122227-ENG117667-Car_Function_Adaptations_Gen2-menu_display_BCmE_clamp_15_off not activated 60 ENG122227-ENG117668-Car_Function_Adaptations_Gen2-menu_display_BCmE_over_threshold_high activated 60 ENG122227-ENG117669-Car_Function_Adaptations_Gen2-menu_display_BCmE_standstill not activated 60 ENG122227-ENG117536-Car_Function_Adaptations_Gen2-menu_display_board_computer activated 60 ENG122227-ENG117540-Car_Function_Adaptations_Gen2-menu_display_board_computer_after_disclaimer not activated 60 ENG122227-ENG117537-Car_Function_Adaptations_Gen2-menu_display_board_computer_clamp_15_off not activated 60 ENG122227-ENG117538-Car_Function_Adaptations_Gen2-menu_display_board_computer_over_threshold_high activated 60 ENG122227-ENG117539-Car_Function_Adaptations_Gen2-menu_display_board_computer_standstill not activated 60 ENG122227-ENG117671-Car_Function_Adaptations_Gen2-menu_display_Brake_Function activated 60 ENG122227-ENG117675-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_after_disclaimer not activated 60 ENG122227-ENG117672-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_clamp_15_off not activated 60 ENG122227-ENG117673-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_over_threshold_high activated 60 ENG122227-ENG117674-Car_Function_Adaptations_Gen2-menu_display_Brake_Function_standstill not activated 60 ENG122227-ENG117651-Car_Function_Adaptations_Gen2-menu_display_car_mirror activated 60 ENG122227-ENG117655-Car_Function_Adaptations_Gen2-menu_display_car_mirror_after_disclaimer not activated 60 ENG122227-ENG117652-Car_Function_Adaptations_Gen2-menu_display_car_mirror_clamp_15_off not activated 60 ENG122227-ENG117653-Car_Function_Adaptations_Gen2-menu_display_car_mirror_over_threshold_high activated 60 ENG122227-ENG117654-Car_Function_Adaptations_Gen2-menu_display_car_mirror_standstill not activated 60 ENG122227-ENG117561-Car_Function_Adaptations_Gen2-menu_display_central_locking activated 60 ENG122227-ENG117565-Car_Function_Adaptations_Gen2-menu_display_central_locking_after_disclaimer not activated 60 ENG122227-ENG117562-Car_Function_Adaptations_Gen2-menu_display_central_locking_clamp_15_off not activated 60 ENG122227-ENG117563-Car_Function_Adaptations_Gen2-menu_display_central_locking_over_threshold_high activated 60 ENG122227-ENG117564-Car_Function_Adaptations_Gen2-menu_display_central_locking_standstill not activated 60 ENG122227-ENG117601-Car_Function_Adaptations_Gen2-menu_display_central_unit_master activated 60 ENG122227-ENG117605-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_after_disclaimer not activated 60 ENG122227-ENG117602-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_clamp_15_off not activated 60 ENG122227-ENG117603-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_over_threshold_high activated 60 ENG122227-ENG117604-Car_Function_Adaptations_Gen2-menu_display_central_unit_master_standstill not activated 60 ENG122227-ENG117571-Car_Function_Adaptations_Gen2-menu_display_charisma not activated 60 ENG122227-ENG117575-Car_Function_Adaptations_Gen2-menu_display_charisma_after_disclaimer not activated 60 ENG122227-ENG117572-Car_Function_Adaptations_Gen2-menu_display_charisma_clamp_15_off not activated 60 ENG122227-ENG117573-Car_Function_Adaptations_Gen2-menu_display_charisma_over_threshold_high not activated 60 ENG122227-ENG117574-Car_Function_Adaptations_Gen2-menu_display_charisma_standstill not activated 60 ENG122227-ENG117526-Car_Function_Adaptations_Gen2-menu_display_clima_configuration activated 60 ENG122227-ENG117530-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_after_disclaimer not activated 60 ENG122227-ENG117527-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_clamp_15_off not activated 60 ENG122227-ENG117528-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_over_threshold_high activated 60 ENG122227-ENG117529-Car_Function_Adaptations_Gen2-menu_display_clima_configuration_standstill not activated 60 ENG122227-ENG117586-Car_Function_Adaptations_Gen2-menu_display_clock activated 60 ENG122227-ENG117590-Car_Function_Adaptations_Gen2-menu_display_clock_after_disclaimer not activated 60 ENG122227-ENG117587-Car_Function_Adaptations_Gen2-menu_display_clock_clamp_15_off not activated 60 ENG122227-ENG117588-Car_Function_Adaptations_Gen2-menu_display_clock_over_threshold_high activated 60 ENG122227-ENG117589-Car_Function_Adaptations_Gen2-menu_display_clock_standstill not activated 60 ENG122227-ENG117566-Car_Function_Adaptations_Gen2-menu_display_compass not activated 60 ENG122227-ENG117570-Car_Function_Adaptations_Gen2-menu_display_compass_after_disclaimer not activated 60 ENG122227-ENG117567-Car_Function_Adaptations_Gen2-menu_display_compass_clamp_15_off not activated 60 ENG122227-ENG117568-Car_Function_Adaptations_Gen2-menu_display_compass_over_threshold_high not activated 60 ENG122227-ENG117569-Car_Function_Adaptations_Gen2-menu_display_compass_standstill not activated 60 ENG122227-ENG125823-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist not activated 60 ENG122227-ENG125826-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_after_disclaimer not activated 60 ENG122227-ENG126998-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_clamp_15_off not activated 60 ENG122227-ENG125824-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_over_threshold_high not activated 60 ENG122227-ENG125825-Car_Function_Adaptations_Gen2-menu_display_Curve_Assist_standstill not activated 60 ENG122227-ENG142087-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration not activated 60 ENG122227-ENG142091-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_after_disclaimer not activated 60 ENG122227-ENG142088-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_clamp_15_off not activated 60 ENG122227-ENG142089-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_over_threshold_high not activated 60 ENG122227-ENG142090-Car_Function_Adaptations_Gen2-menu_display_Display_Configuration_standstill not activated 60 ENG122227-ENG117656-Car_Function_Adaptations_Gen2-menu_display_driving_school not activated 60 ENG122227-ENG117660-Car_Function_Adaptations_Gen2-menu_display_driving_school_after_disclaimer not activated 60 ENG122227-ENG117657-Car_Function_Adaptations_Gen2-menu_display_driving_school_clamp_15_off not activated 60 ENG122227-ENG117658-Car_Function_Adaptations_Gen2-menu_display_driving_school_over_threshold_high not activated 60 ENG122227-ENG117659-Car_Function_Adaptations_Gen2-menu_display_driving_school_standstill not activated 60 ENG122227-ENG125034-Car_Function_Adaptations_Gen2-menu_display_Ecall activated 60 ENG122227-ENG125038-Car_Function_Adaptations_Gen2-menu_display_Ecall_after_disclaimer not activated 60 ENG122227-ENG126999-Car_Function_Adaptations_Gen2-menu_display_eCall_clamp_15_off not activated 60 ENG122227-ENG125036-Car_Function_Adaptations_Gen2-menu_display_Ecall_over_threshold_high activated 60 ENG122227-ENG125037-Car_Function_Adaptations_Gen2-menu_display_Ecall_standstill not activated 60 ENG122227-ENG126160-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist not activated 60 ENG122227-ENG126163-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_after_disclaimer not activated 60 ENG122227-ENG127004-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_clamp_15_off not activated 60 ENG122227-ENG126161-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_over_threshold_high not activated 60 ENG122227-ENG126162-Car_Function_Adaptations_Gen2-menu_display_Efficiency_Assist_standstill not activated 60 ENG122227-ENG126144-Car_Function_Adaptations_Gen2-menu_display_ENI activated 60 ENG122227-ENG126147-Car_Function_Adaptations_Gen2-menu_display_ENI_after_disclaimer not activated 60 ENG122227-ENG127000-Car_Function_Adaptations_Gen2-menu_display_ENI_clamp_15_off not activated 60 ENG122227-ENG126145-Car_Function_Adaptations_Gen2-menu_display_ENI_over_threshold_high activated 60 ENG122227-ENG126146-Car_Function_Adaptations_Gen2-menu_display_ENI_standstill not activated 60 ENG122227-ENG117516-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination activated 60 ENG122227-ENG117520-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_after_disclaimer not activated 60 ENG122227-ENG117517-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_clamp_15_off not activated 60 ENG122227-ENG117518-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_over_threshold_high activated 60 ENG122227-ENG117519-Car_Function_Adaptations_Gen2-menu_display_exterior_illumination_standstill not activated 60 ENG122227-ENG117596-Car_Function_Adaptations_Gen2-menu_display_headup_display not activated 60 ENG122227-ENG117600-Car_Function_Adaptations_Gen2-menu_display_headup_display_after_disclaimer not activated 60 ENG122227-ENG117597-Car_Function_Adaptations_Gen2-menu_display_headup_display_clamp_15_off not activated 60 ENG122227-ENG117598-Car_Function_Adaptations_Gen2-menu_display_headup_display_over_threshold_high not activated 60 ENG122227-ENG117599-Car_Function_Adaptations_Gen2-menu_display_headup_display_standstill not activated 60 ENG122227-ENG117606-Car_Function_Adaptations_Gen2-menu_display_hybrid not activated 60 ENG122227-ENG117610-Car_Function_Adaptations_Gen2-menu_display_hybrid_after_disclaimer not activated 60 ENG122227-ENG117607-Car_Function_Adaptations_Gen2-menu_display_hybrid_clamp_15_off not activated 60 ENG122227-ENG117608-Car_Function_Adaptations_Gen2-menu_display_hybrid_over_threshold_high not activated 60 ENG122227-ENG117609-Car_Function_Adaptations_Gen2-menu_display_hybrid_standstill not activated 60 ENG122227-ENG125805-Car_Function_Adaptations_Gen2-menu_display_lane_assistant activated 60 ENG122227-ENG125809-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_after_disclaimer not activated 60 ENG122227-ENG125806-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_clamp_15_off not activated 60 ENG122227-ENG125807-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_over_threshold_high activated 60 ENG122227-ENG125808-Car_Function_Adaptations_Gen2-menu_display_lane_assistant_standstill not activated 60 ENG122227-ENG117506-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning not activated 60 ENG122227-ENG117510-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_after_disclaimer not activated 60 ENG122227-ENG117507-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_clamp_15_off not activated 60 ENG122227-ENG117508-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_over_threshold_high not activated 60 ENG122227-ENG117509-Car_Function_Adaptations_Gen2-menu_display_Lane_Departure_Warning_standstill not activated 60 ENG122227-ENG117631-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker not activated 60 ENG122227-ENG117635-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_after_disclaimer not activated 60 ENG122227-ENG117632-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_clamp_15_off not activated 60 ENG122227-ENG117633-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_over_threshold_high not activated 60 ENG122227-ENG117634-Car_Function_Adaptations_Gen2-menu_display_MFL_jocker_standstill not activated 60 ENG122227-ENG117616-Car_Function_Adaptations_Gen2-menu_display_night_vision not activated 60 ENG122227-ENG117620-Car_Function_Adaptations_Gen2-menu_display_night_vision_after_disclaimer not activated 60 ENG122227-ENG117617-Car_Function_Adaptations_Gen2-menu_display_night_vision_clamp_15_off not activated 60 ENG122227-ENG117618-Car_Function_Adaptations_Gen2-menu_display_night_vision_over_threshold_high not activated 60 ENG122227-ENG117619-Car_Function_Adaptations_Gen2-menu_display_night_vision_standstill not activated 60 ENG122227-ENG117576-Car_Function_Adaptations_Gen2-menu_display_oil_level not activated 60 ENG122227-ENG117580-Car_Function_Adaptations_Gen2-menu_display_oil_level_after_disclaimer not activated 60 ENG122227-ENG117577-Car_Function_Adaptations_Gen2-menu_display_oil_level_clamp_15_off not activated 60 ENG122227-ENG117578-Car_Function_Adaptations_Gen2-menu_display_oil_level_over_threshold_high not activated 60 ENG122227-ENG117579-Car_Function_Adaptations_Gen2-menu_display_oil_level_standstill not activated 60 ENG122227-ENG117496-Car_Function_Adaptations_Gen2-menu_display_pdc activated 60 ENG122227-ENG117500-Car_Function_Adaptations_Gen2-menu_display_pdc_after_disclaimer not activated 60 ENG122227-ENG117497-Car_Function_Adaptations_Gen2-menu_display_pdc_clamp_15_off not activated 60 ENG122227-ENG117498-Car_Function_Adaptations_Gen2-menu_display_pdc_over_threshold_high activated 60 ENG122227-ENG117499-Car_Function_Adaptations_Gen2-menu_display_pdc_standstill not activated 60 ENG122227-ENG125815-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist not activated 60 ENG122227-ENG125818-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_after_disclaimer not activated 60 ENG122227-ENG126996-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_clamp_15_off not activated 60 ENG122227-ENG125816-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_over_threshold_high not activated 60 ENG122227-ENG125817-Car_Function_Adaptations_Gen2-menu_display_Pedestrian_Assist_standstill not activated 60 ENG122227-ENG117541-Car_Function_Adaptations_Gen2-menu_display_rdk activated 60 ENG122227-ENG117545-Car_Function_Adaptations_Gen2-menu_display_rdk_after_disclaimer not activated 60 ENG122227-ENG117542-Car_Function_Adaptations_Gen2-menu_display_rdk_clamp_15_off not activated 60 ENG122227-ENG117543-Car_Function_Adaptations_Gen2-menu_display_rdk_over_threshold_high activated 60 ENG122227-ENG117544-Car_Function_Adaptations_Gen2-menu_display_rdk_standstill not activated 60 ENG122227-ENG122306-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment not activated 60 ENG122227-ENG122310-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_after_disclaimer not activated 60 ENG122227-ENG122307-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_clamp_15_off not activated 60 ENG122227-ENG122308-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_over_threshold_high not activated 60 ENG122227-ENG122309-Car_Function_Adaptations_Gen2-menu_display_RearSeatEntertainment_standstill not activated 60 ENG122227-ENG117626-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load activated 60 ENG122227-ENG117630-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_after_disclaimer not activated 60 ENG122227-ENG117627-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_clamp_15_off not activated 60 ENG122227-ENG117628-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_over_threshold_high activated 60 ENG122227-ENG117629-Car_Function_Adaptations_Gen2-menu_display_reversible_belt_pre_load_standstill not activated 60 ENG122227-ENG117636-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification activated 60 ENG122227-ENG117640-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_after_disclaimer not activated 60 ENG122227-ENG117637-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_clamp_15_off not activated 60 ENG122227-ENG117638-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_over_threshold_high not activated 60 ENG122227-ENG117639-Car_Function_Adaptations_Gen2-menu_display_road_sign_identification_standstill not activated 60 ENG122227-ENG117556-Car_Function_Adaptations_Gen2-menu_display_seat_configuration not activated 60 ENG122227-ENG117560-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_after_disclaimer not activated 60 ENG122227-ENG117557-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_clamp_15_off not activated 60 ENG122227-ENG117558-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_over_threshold_high not activated 60 ENG122227-ENG117559-Car_Function_Adaptations_Gen2-menu_display_seat_configuration_standstill not activated 60 ENG122227-ENG125819-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic not activated 60 ENG122227-ENG125822-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_after_disclaimer not activated 60 ENG122227-ENG126997-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_clamp_15_off not activated 60 ENG122227-ENG125820-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_over_threshold_high not activated 60 ENG122227-ENG125821-Car_Function_Adaptations_Gen2-menu_display_Seat_Pneumatic_standstill not activated 60 ENG122227-ENG117551-Car_Function_Adaptations_Gen2-menu_display_sia activated 60 ENG122227-ENG117555-Car_Function_Adaptations_Gen2-menu_display_sia_after_disclaimer not activated 60 ENG122227-ENG117552-Car_Function_Adaptations_Gen2-menu_display_sia_clamp_15_off not activated 60 ENG122227-ENG117553-Car_Function_Adaptations_Gen2-menu_display_sia_over_threshold_high activated 60 ENG122227-ENG117554-Car_Function_Adaptations_Gen2-menu_display_sia_standstill not activated 60 ENG122227-ENG117621-Car_Function_Adaptations_Gen2-menu_display_side_view not activated 60 ENG122227-ENG117625-Car_Function_Adaptations_Gen2-menu_display_side_view_after_disclaimer not activated 60 ENG122227-ENG117622-Car_Function_Adaptations_Gen2-menu_display_side_view_clamp_15_off not activated 60 ENG122227-ENG117623-Car_Function_Adaptations_Gen2-menu_display_side_view_over_threshold_high not activated 60 ENG122227-ENG117624-Car_Function_Adaptations_Gen2-menu_display_side_view_standstill not activated 60 ENG122227-ENG122311-Car_Function_Adaptations_Gen2-menu_display_special_functions not activated 60 ENG122227-ENG122314-Car_Function_Adaptations_Gen2-menu_display_special_functions_after_disclaimer not activated 60 ENG122227-ENG125810-Car_Function_Adaptations_Gen2-menu_display_special_functions_clamp_15_off not activated 60 ENG122227-ENG122312-Car_Function_Adaptations_Gen2-menu_display_special_functions_over_threshold_high not activated 60 ENG122227-ENG122313-Car_Function_Adaptations_Gen2-menu_display_special_functions_standstill not activated 60 ENG122227-ENG142082-Car_Function_Adaptations_Gen2-menu_display_Spoiler not activated 60 ENG122227-ENG142086-Car_Function_Adaptations_Gen2-menu_display_Spoiler_after_disclaimer not activated 60 ENG122227-ENG142083-Car_Function_Adaptations_Gen2-menu_display_Spoiler_clamp_15_off not activated 60 ENG122227-ENG142084-Car_Function_Adaptations_Gen2-menu_display_Spoiler_over_threshold_high not activated 60 ENG122227-ENG142085-Car_Function_Adaptations_Gen2-menu_display_Spoiler_standstill not activated 60 ENG122227-ENG126148-Car_Function_Adaptations_Gen2-menu_display_SportHMI not activated 60 ENG122227-ENG126151-Car_Function_Adaptations_Gen2-menu_display_SportHMI_after_disclaimer not activated 60 ENG122227-ENG127001-Car_Function_Adaptations_Gen2-menu_display_SportHMI_clamp_15_off not activated 60 ENG122227-ENG126149-Car_Function_Adaptations_Gen2-menu_display_SportHMI_over_threshold_high not activated 60 ENG122227-ENG126150-Car_Function_Adaptations_Gen2-menu_display_SportHMI_standstill not activated 60 ENG122227-ENG117676-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons activated 60 ENG122227-ENG117680-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_after_disclaimer not activated 60 ENG122227-ENG117677-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_clamp_15_off not activated 60 ENG122227-ENG117678-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_over_threshold_high activated 60 ENG122227-ENG117679-Car_Function_Adaptations_Gen2-menu_display_Start_Stop_reasons_standstill not activated 60 ENG122227-ENG122315-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant not activated 60 ENG122227-ENG122319-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_after_disclaimer not activated 60 ENG122227-ENG122316-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_clamp_15_off not activated 60 ENG122227-ENG122317-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_over_threshold_high not activated 60 ENG122227-ENG122318-Car_Function_Adaptations_Gen2-menu_display_trailer_assistant_standstill not activated 60 ENG122227-ENG122320-Car_Function_Adaptations_Gen2-menu_display_TV_tuner not activated 60 ENG122227-ENG122324-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_after_disclaimer not activated 60 ENG122227-ENG122321-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_clamp_15_off not activated 60 ENG122227-ENG122322-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_over_threshold_high not activated 60 ENG122227-ENG122323-Car_Function_Adaptations_Gen2-menu_display_TV_tuner_standstill not activated 60 ENG122227-ENG117611-Car_Function_Adaptations_Gen2-menu_display_ugdo not activated 60 ENG122227-ENG117615-Car_Function_Adaptations_Gen2-menu_display_ugdo_after_disclaimer not activated 60 ENG122227-ENG117612-Car_Function_Adaptations_Gen2-menu_display_ugdo_clamp_15_off not activated 60 ENG122227-ENG117613-Car_Function_Adaptations_Gen2-menu_display_ugdo_over_threshold_high not activated 60 ENG122227-ENG117614-Car_Function_Adaptations_Gen2-menu_display_ugdo_standstill not activated 60 ENG122227-ENG122291-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating activated 60 ENG122227-ENG122295-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_after_disclaimer not activated 60 ENG122227-ENG122292-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_clamp_15_off not activated 60 ENG122227-ENG122293-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_over_threshold_high activated 60 ENG122227-ENG122294-Car_Function_Adaptations_Gen2-menu_display_user_eco_rating_standstill not activated 60 ENG122227-ENG117581-Car_Function_Adaptations_Gen2-menu_display_vin activated 60 ENG122227-ENG117585-Car_Function_Adaptations_Gen2-menu_display_vin_after_disclaimer not activated 60 ENG122227-ENG117582-Car_Function_Adaptations_Gen2-menu_display_vin_clamp_15_off not activated 60 ENG122227-ENG117583-Car_Function_Adaptations_Gen2-menu_display_vin_over_threshold_high activated 60 ENG122227-ENG117584-Car_Function_Adaptations_Gen2-menu_display_vin_standstill not activated 60 ENG122227-ENG117661-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition activated 60 ENG122227-ENG117665-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_after_disclaimer not activated 60 ENG122227-ENG117662-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_clamp_15_off not activated 60 ENG122227-ENG117663-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_over_threshold_high activated 60 ENG122227-ENG117664-Car_Function_Adaptations_Gen2-menu_display_weariness_recognition_standstill not activated 60 ENG122227-ENG117521-Car_Function_Adaptations_Gen2-menu_display_windows activated 60 ENG122227-ENG117525-Car_Function_Adaptations_Gen2-menu_display_windows_after_disclaimer not activated 60 ENG122227-ENG117522-Car_Function_Adaptations_Gen2-menu_display_windows_clamp_15_off not activated 60 ENG122227-ENG117523-Car_Function_Adaptations_Gen2-menu_display_windows_over_threshold_high activated 60 ENG122227-ENG117524-Car_Function_Adaptations_Gen2-menu_display_windows_standstill not activated 60 ENG122227-ENG117546-Car_Function_Adaptations_Gen2-menu_display_wiper activated 60 ENG122227-ENG117550-Car_Function_Adaptations_Gen2-menu_display_wiper_after_disclaimer not activated 60 ENG122227-ENG117547-Car_Function_Adaptations_Gen2-menu_display_wiper_clamp_15_off not activated 60 ENG122227-ENG117548-Car_Function_Adaptations_Gen2-menu_display_wiper_over_threshold_high activated 60 ENG122227-ENG117549-Car_Function_Adaptations_Gen2-menu_display_wiper_standstill not activated 60 ENG122227-ENG142092-Car_Function_Adaptations_Gen2-menu_soundcontrol not activated 60 ENG122227-ENG142096-Car_Function_Adaptations_Gen2-menu_soundcontrol_after_disclaimer not activated 60 ENG122227-ENG142093-Car_Function_Adaptations_Gen2-menu_soundcontrol_clamp_15_off not activated 60 ENG122227-ENG142094-Car_Function_Adaptations_Gen2-menu_soundcontrol_over_threshold_high not activated 60 ENG122227-ENG142095-Car_Function_Adaptations_Gen2-menu_soundcontrol_standstill not activated 60 ENG122229-ENG117700-Car_Function_List_BAP_Gen2-ACC_0x05 activated 64 ENG122229-ENG117701-Car_Function_List_BAP_Gen2-ACC_0x05_msg_bus Extended data bus 64 ENG122229-ENG117702-Car_Function_List_BAP_Gen2-air_suspension_0x06 not activated 64 ENG122229-ENG117703-Car_Function_List_BAP_Gen2-air_suspension_0x06_msg_bus Suspension data bus 64 ENG122229-ENG117764-Car_Function_List_BAP_Gen2-Amplifier_0x2D not activated 64 ENG122229-ENG117765-Car_Function_List_BAP_Gen2-Amplifier_0x2D_msg_bus Infotainment data bus 64 ENG122229-ENG122334-Car_Function_List_BAP_Gen2-Angle_Of_Slope_0x24 not activated 64 ENG122229-ENG122335-Car_Function_List_BAP_Gen2-Angle_Of_Slope_0x24_msg_bus not activated 64 ENG122229-ENG117696-Car_Function_List_BAP_Gen2-auxilary_heating_0x03 not activated 64 ENG122229-ENG117697-Car_Function_List_BAP_Gen2-auxilary_heating_0x03_msg_bus Comfort data bus 64 ENG122229-ENG117744-Car_Function_List_BAP_Gen2-AWV_0x1B activated 64 ENG122229-ENG117745-Car_Function_List_BAP_Gen2-AWV_0x1B_msg_bus Terminal 15 64 ENG122229-ENG122336-Car_Function_List_BAP_Gen2-Battery_Management_0x25 not activated 64 ENG122229-ENG122337-Car_Function_List_BAP_Gen2-Battery_Management_0x25_msg_bus Powertrain data bus 64 ENG122229-ENG117758-Car_Function_List_BAP_Gen2-BCmE_0x23 activated 64 ENG122229-ENG117759-Car_Function_List_BAP_Gen2-BCmE_0x23_msg_bus Infotainment data bus 64 ENG122229-ENG117760-Car_Function_List_BAP_Gen2-Brake_0x26 activated 64 ENG122229-ENG117761-Car_Function_List_BAP_Gen2-Brake_0x26_msg_bus Suspension data bus 64 ENG122229-ENG117717-Car_Function_List_BAP_Gen2-central_locking_0x0D activated 64 ENG122229-ENG117716-Car_Function_List_BAP_Gen2-central_locking_0x0D_msg_bus Comfort data bus 64 ENG122229-ENG117736-Car_Function_List_BAP_Gen2-charisma_0x17 not activated 64 ENG122229-ENG117737-Car_Function_List_BAP_Gen2-charisma_0x17_msg_bus Infotainment data bus 64 ENG122229-ENG117734-Car_Function_List_BAP_Gen2-clima_slave_2_0x16 not activated 64 ENG122229-ENG117735-Car_Function_List_BAP_Gen2-clima_slave_2_0x16_msg_bus Comfort data bus 64 ENG122229-ENG117692-Car_Function_List_BAP_Gen2-climatic_master_0x01 activated 64 ENG122229-ENG117693-Car_Function_List_BAP_Gen2-climatic_master_0x01_msg_bus Comfort data bus 64 ENG122229-ENG117694-Car_Function_List_BAP_Gen2-climatic_slave_0x02 activated 64 ENG122229-ENG117695-Car_Function_List_BAP_Gen2-climatic_slave_0x02_msg_bus Comfort data bus 64 ENG122229-ENG117724-Car_Function_List_BAP_Gen2-clock_0x11 activated 64 ENG122229-ENG117725-Car_Function_List_BAP_Gen2-clock_0x11_msg_bus Comfort data bus 64 ENG122229-ENG117732-Car_Function_List_BAP_Gen2-compass_0x15 not activated 64 ENG122229-ENG117733-Car_Function_List_BAP_Gen2-compass_0x15_msg_bus not activated 64 ENG122229-ENG117722-Car_Function_List_BAP_Gen2-driver_seat_0x10 not activated 64 ENG122229-ENG117723-Car_Function_List_BAP_Gen2-driver_seat_0x10_msg_bus Comfort data bus 64 ENG122229-ENG125039-Car_Function_List_BAP_Gen2-Ecall_0x33 activated 64 ENG122229-ENG125828-Car_Function_List_BAP_Gen2-eCall_0x33_msg_bus Comfort data bus 64 ENG122229-ENG127500-Car_Function_List_BAP_Gen2-efficiency_assis_msg_bus_0x3C not activated 64 ENG122229-ENG127499-Car_Function_List_BAP_Gen2-efficiency_assist_0x3C not activated 64 ENG122229-ENG125829-Car_Function_List_BAP_Gen2-ENI_0x37 activated 64 ENG122229-ENG125830-Car_Function_List_BAP_Gen2-ENI_0x37_msg_bus Comfort data bus 64 ENG122229-ENG152531-Car_Function_List_BAP_Gen2-ExBoxM2_0x38 not activated 64 ENG122229-ENG152532-Car_Function_List_BAP_Gen2-ExBoxM2_0x38_msg_bus Comfort data bus 64 ENG122229-ENG117708-Car_Function_List_BAP_Gen2-exterieur_light_0x09 activated 64 ENG122229-ENG117709-Car_Function_List_BAP_Gen2-exterieur_light_0x09_msg_bus Comfort data bus 64 ENG122229-ENG117698-Car_Function_List_BAP_Gen2-headup_displ_0x04 not activated 64 ENG122229-ENG117699-Car_Function_List_BAP_Gen2-headup_displ_0x04_msg_bus Comfort data bus 64 ENG122229-ENG117746-Car_Function_List_BAP_Gen2-Hybrid_0x1D not activated 64 ENG122229-ENG117747-Car_Function_List_BAP_Gen2-Hybrid_0x1D_msg_bus Powertrain data bus 64 ENG122229-ENG117706-Car_Function_List_BAP_Gen2-interieur_light_0x08 activated 64 ENG122229-ENG117707-Car_Function_List_BAP_Gen2-interieur_light_0x08_msg_bus Comfort data bus 64 ENG122229-ENG117740-Car_Function_List_BAP_Gen2-LDW_HCA_0x19 activated 64 ENG122229-ENG117741-Car_Function_List_BAP_Gen2-LDW_HCA_0x19_msg_bus Extended data bus 64 ENG122229-ENG117720-Car_Function_List_BAP_Gen2-MFA_0x0F activated 64 ENG122229-ENG117721-Car_Function_List_BAP_Gen2-MFA_0x0F_msg_bus Comfort data bus 64 ENG122229-ENG117767-Car_Function_List_BAP_Gen2-MFL_Jocker_0x34 not activated 64 ENG122229-ENG117766-Car_Function_List_BAP_Gen2-MFL_Jocker_msg_bus_0x34 Infotainment data bus 64 ENG122229-ENG117719-Car_Function_List_BAP_Gen2-mirror_0x0E activated 64 ENG122229-ENG117718-Car_Function_List_BAP_Gen2-mirror_0x0E_msg_bus Comfort data bus 64 ENG122229-ENG117738-Car_Function_List_BAP_Gen2-Night_Vision_0x18 not activated 64 ENG122229-ENG117739-Car_Function_List_BAP_Gen2-Night_Vision_0x18_msg_bus not activated 64 ENG122229-ENG117710-Car_Function_List_BAP_Gen2-parking_assist_0x0A activated 64 ENG122229-ENG117711-Car_Function_List_BAP_Gen2-parking_assist_0x0A_msg_bus Terminal 15 64 ENG122229-ENG117752-Car_Function_List_BAP_Gen2-Passenger_Seat_0x20 not activated 64 ENG122229-ENG117753-Car_Function_List_BAP_Gen2-Passenger_Seat_0x20_msg_bus Comfort data bus 64 ENG122229-ENG125831-Car_Function_List_BAP_Gen2-Pedestrian_Assist_0x3A not activated 64 ENG122229-ENG125832-Car_Function_List_BAP_Gen2-Pedestrian_Assist_msg_bus_0x3A Extended data bus 64 ENG122229-ENG122333-Car_Function_List_BAP_Gen2-Range_Data_0x39 not activated 64 ENG122229-ENG125827-Car_Function_List_BAP_Gen2-Range_Data_msg_bus_0x39 Infotainment data bus 64 ENG122229-ENG122327-Car_Function_List_BAP_Gen2-RearSeatEntertainment_0x2E not activated 64 ENG122229-ENG122328-Car_Function_List_BAP_Gen2-RearSeatEntertainment_0x2E_msg_bus Comfort data bus 64 ENG122229-ENG117750-Car_Function_List_BAP_Gen2-Reversible_Seat_Belt_Tightener_0x1F activated 64 ENG122229-ENG117751-Car_Function_List_BAP_Gen2-Reversible_Seat_Belt_Tightener_0x1F_msg_bus Powertrain data bus 64 ENG122229-ENG125833-Car_Function_List_BAP_Gen2-Seat_Pneumatic_0x3B not activated 64 ENG122229-ENG125834-Car_Function_List_BAP_Gen2-Seat_Pneumatic_msg_bus_0x3B Comfort data bus 64 ENG122229-ENG139200-Car_Function_List_BAP_Gen2-Seatmemory_codriver_rear_0x3F not activated 64 ENG122229-ENG139201-Car_Function_List_BAP_Gen2-Seatmemory_codriver_rear_msg_bus_0x3F Comfort data bus 64 ENG122229-ENG139198-Car_Function_List_BAP_Gen2-Seatmemory_driver_rear_0x3E not activated 64 ENG122229-ENG139199-Car_Function_List_BAP_Gen2-Seatmemory_driver_rear_msg_bus_0x3E Comfort data bus 64 ENG122229-ENG117726-Car_Function_List_BAP_Gen2-service_interval_display_0x12 activated 64 ENG122229-ENG117727-Car_Function_List_BAP_Gen2-service_interval_display_0x12_msg_bus Comfort data bus 64 ENG122229-ENG117748-Car_Function_List_BAP_Gen2-SideView_0x1E not activated 64 ENG122229-ENG117749-Car_Function_List_BAP_Gen2-SideView_0x1E_msg_bus not activated 64 ENG122229-ENG122329-Car_Function_List_BAP_Gen2-Special_Functions_0x35 not activated 64 ENG122229-ENG122330-Car_Function_List_BAP_Gen2-Special_Functions_msg_bus_0x35 Comfort data bus 64 ENG122229-ENG117762-Car_Function_List_BAP_Gen2-Start_Stop_reasons_0x27 activated 64 ENG122229-ENG117763-Car_Function_List_BAP_Gen2-Start_Stop_reasons_0x27_msg_bus Infotainment data bus 64 ENG122229-ENG117742-Car_Function_List_BAP_Gen2-SWA_0x1A not activated 64 ENG122229-ENG117743-Car_Function_List_BAP_Gen2-SWA_0x1A_msg_bus Extended data bus 64 ENG122229-ENG117704-Car_Function_List_BAP_Gen2-tire_pressure_system_0x07 activated 64 ENG122229-ENG117705-Car_Function_List_BAP_Gen2-tire_pressure_system_0x07_msg_bus Suspension data bus 64 ENG122229-ENG117754-Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21 activated 64 ENG122229-ENG117755-Car_Function_List_BAP_Gen2-traffic_sign_recognition_0x21_msg_bus Extended data bus 64 ENG122229-ENG122331-Car_Function_List_BAP_Gen2-Trailer_Assistant_0x36 not activated 64 ENG122229-ENG122332-Car_Function_List_BAP_Gen2-Trailer_Assistant_msg_bus_0x36 Comfort data bus 64 ENG122229-ENG122325-Car_Function_List_BAP_Gen2-TV_tuner_0x2C not activated 64 ENG122229-ENG122326-Car_Function_List_BAP_Gen2-TV_tuner_0x2C_msg_bus Comfort data bus 64 ENG122229-ENG117730-Car_Function_List_BAP_Gen2-UGDO_0x14 not activated 64 ENG122229-ENG117731-Car_Function_List_BAP_Gen2-UGDO_0x14_msg_bus Terminal 15 64 ENG122229-ENG117728-Car_Function_List_BAP_Gen2-unit_master_0x13 activated 64 ENG122229-ENG117729-Car_Function_List_BAP_Gen2-unit_master_0x13_msg_bus Comfort data bus 64 ENG122229-ENG117712-Car_Function_List_BAP_Gen2-VPS_0x0B activated 64 ENG122229-ENG117713-Car_Function_List_BAP_Gen2-VPS_0x0B_msg_bus Infotainment data bus 64 ENG122229-ENG117756-Car_Function_List_BAP_Gen2-weariness_rcognition_0x22 activated 64 ENG122229-ENG117757-Car_Function_List_BAP_Gen2-weariness_rcognition_0x22_msg_bus Infotainment data bus 64 ENG122229-ENG117714-Car_Function_List_BAP_Gen2-wiper_comfort_0x0C activated 64 ENG122229-ENG117715-Car_Function_List_BAP_Gen2-wiper_comfort_0x0C_msg_bus Comfort data bus 64 ENG122228-ENG127498-Car_Function_List_CAN_Gen2-Adaptive_key Not available 8 ENG122228-ENG117690-Car_Function_List_CAN_Gen2-Adaptive_key_msg_bus Comfort data bus 8 ENG122228-ENG117688-Car_Function_List_CAN_Gen2-Driving_school Not available 8 ENG122228-ENG117689-Car_Function_List_CAN_Gen2-Driving_school_msg_bus Infotainment data bus 8 ENG122228-ENG107608-Car_Function_List_CAN_Gen2-MFL Available 8 ENG122228-ENG117681-Car_Function_List_CAN_Gen2-MFL_msg_bus Infotainment data bus 8 ENG122228-ENG117683-Car_Function_List_CAN_Gen2-Oil_level Not available 8 ENG122228-ENG117684-Car_Function_List_CAN_Gen2-Oil_level_msg_bus Powertrain data bus 8 ENG122228-ENG117685-Car_Function_List_CAN_Gen2-PDC_audio_lowering Available 8 ENG122228-ENG117686-Car_Function_List_CAN_Gen2-PDC_audio_lowering_msg_bus Suspension data bus 8 ENG122228-ENG98891-Car_Function_List_CAN_Gen2-Reserved Not available 8 ENG122228-ENG101416-Car_Function_List_CAN_Gen2-Reserved_1 Comfort data bus 8 ENG122228-ENG99458-Car_Function_List_CAN_Gen2-Reserved_2 Comfort data bus 8 ENG122228-ENG99668-Car_Function_List_CAN_Gen2-Reserved_3 Not available 8 ENG122228-ENG99892-Car_Function_List_CAN_Gen2-VIN Available 8 ENG122228-ENG117687-Car_Function_List_CAN_Gen2-VIN_msg_bus Comfort data bus 8 ENG122230-ENG142097-Dashboard_Display_Configuration-ability_switch_nav_maps OFF 10 ENG122230-ENG122343-Dashboard_Display_Configuration-call_picture On 10 ENG122230-ENG122341-Dashboard_Display_Configuration-coverart On 10 ENG122230-ENG122340-Dashboard_Display_Configuration-crossroad_detail_map_compression_mode RLE 10 ENG122230-ENG122344-Dashboard_Display_Configuration-crossroad_detail_map_resolution resolution_1 10 ENG122230-ENG127006-Dashboard_Display_Configuration-crossroad_detail_map_transmission_mode OFF 10 ENG122230-ENG142153-Dashboard_Display_Configuration-dynamic_icon 0 10 ENG122230-ENG127501-Dashboard_Display_Configuration-fastlist_most OFF 10 ENG122230-ENG122338-Dashboard_Display_Configuration-navigation_map_compression_mode H264 10 ENG122230-ENG122339-Dashboard_Display_Configuration-navigation_map_resolution resolution_1 10 ENG122230-ENG127005-Dashboard_Display_Configuration-navigation_map_transmission_mode MOST_streaming 10 ENG122230-ENG122342-Dashboard_Display_Configuration-stationart On 10 ENG117913-ENG101574-Dimming_Ambient_Illumination_Information_Control_Unit-X1 0 6 ENG117913-ENG99557-Dimming_Ambient_Illumination_Information_Control_Unit-X2 50 6 ENG117913-ENG102140-Dimming_Ambient_Illumination_Information_Control_Unit-X3 100 6 ENG117913-ENG99777-Dimming_Ambient_Illumination_Information_Control_Unit-Y1 0 6 ENG117913-ENG100480-Dimming_Ambient_Illumination_Information_Control_Unit-Y2 50 6 ENG117913-ENG100773-Dimming_Ambient_Illumination_Information_Control_Unit-Y3 100 6 ENG117914-ENG101574-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X1 0 6 ENG117914-ENG99557-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X2 50 6 ENG117914-ENG102140-Dimming_Ambient_Illumination_Operating_and_Display_Unit-X3 100 6 ENG117914-ENG99777-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y1 0 6 ENG117914-ENG100480-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y2 50 6 ENG117914-ENG100773-Dimming_Ambient_Illumination_Operating_and_Display_Unit-Y3 100 6 ENG117916-ENG101574-Dimming_Illumination_for_Display_Unit-X1 0 12 ENG117916-ENG99557-Dimming_Illumination_for_Display_Unit-X2 10 12 ENG117916-ENG102140-Dimming_Illumination_for_Display_Unit-X3 50 12 ENG117916-ENG102936-Dimming_Illumination_for_Display_Unit-X4 100 12 ENG117916-ENG103548-Dimming_Illumination_for_Display_Unit-X5 150 12 ENG117916-ENG113992-Dimming_Illumination_for_Display_Unit-X6 253 12 ENG117916-ENG99777-Dimming_Illumination_for_Display_Unit-Y1 1 % 12 ENG117916-ENG100480-Dimming_Illumination_for_Display_Unit-Y2 1 % 12 ENG117916-ENG100773-Dimming_Illumination_for_Display_Unit-Y3 3 % 12 ENG117916-ENG100631-Dimming_Illumination_for_Display_Unit-Y4 6 % 12 ENG117916-ENG102174-Dimming_Illumination_for_Display_Unit-Y5 44 % 12 ENG117916-ENG113993-Dimming_Illumination_for_Display_Unit-Y6 100 % 12 ENG117911-ENG117768-FM_Delay_Adaption-Parameter_Adaption_FM_Delay 0 ms 3 ENG117911-ENG117769-FM_Delay_Adaption-Seamless_linking_automatic On 3 ENG141636-ENG142049-Key_code_monitoring-monitoring_keycode_0x00_0x07 FF 32 ENG141636-ENG142050-Key_code_monitoring-monitoring_keycode_0x08_0x0F FF 32 ENG141636-ENG142051-Key_code_monitoring-monitoring_keycode_0x10_0x17 FF 32 ENG141636-ENG142052-Key_code_monitoring-monitoring_keycode_0x18_0x1F FF 32 ENG141636-ENG142053-Key_code_monitoring-monitoring_keycode_0x20_0x27 FF 32 ENG141636-ENG142054-Key_code_monitoring-monitoring_keycode_0x28_0x2F FF 32 ENG141636-ENG142055-Key_code_monitoring-monitoring_keycode_0x30_0x37 FF 32 ENG141636-ENG142056-Key_code_monitoring-monitoring_keycode_0x38_0x3F FF 32 ENG141636-ENG142057-Key_code_monitoring-monitoring_keycode_0x40_0x47 FF 32 ENG141636-ENG142058-Key_code_monitoring-monitoring_keycode_0x48_0x4F FF 32 ENG141636-ENG142059-Key_code_monitoring-monitoring_keycode_0x50_0x57 FF 32 ENG141636-ENG142060-Key_code_monitoring-monitoring_keycode_0x58_0x5F FF 32 ENG141636-ENG142061-Key_code_monitoring-monitoring_keycode_0x60_0x67 FF 32 ENG141636-ENG142062-Key_code_monitoring-monitoring_keycode_0x68_0x6F FF 32 ENG141636-ENG142063-Key_code_monitoring-monitoring_keycode_0x70_0x77 FF 32 ENG141636-ENG142064-Key_code_monitoring-monitoring_keycode_0x78_0x7F FF 32 ENG141636-ENG142065-Key_code_monitoring-monitoring_keycode_0x80_0x87 FF 32 ENG141636-ENG142066-Key_code_monitoring-monitoring_keycode_0x88_0x8F FF 32 ENG141636-ENG142067-Key_code_monitoring-monitoring_keycode_0x90_0x97 FF 32 ENG141636-ENG142068-Key_code_monitoring-monitoring_keycode_0x98_0x9F FF 32 ENG141636-ENG142069-Key_code_monitoring-monitoring_keycode_0xA0_0xA7 FF 32 ENG141636-ENG142070-Key_code_monitoring-monitoring_keycode_0xA8_0xAF FF 32 ENG141636-ENG142071-Key_code_monitoring-monitoring_keycode_0xB0_0xB7 FF 32 ENG141636-ENG142072-Key_code_monitoring-monitoring_keycode_0xB8_0xBF FF 32 ENG141636-ENG142073-Key_code_monitoring-monitoring_keycode_0xC0_0xC7 FF 32 ENG141636-ENG142074-Key_code_monitoring-monitoring_keycode_0xC8_0xCF FF 32 ENG141636-ENG142075-Key_code_monitoring-monitoring_keycode_0xD0_0xD7 FF 32 ENG141636-ENG142076-Key_code_monitoring-monitoring_keycode_0xD8_0xDF FF 32 ENG141636-ENG142077-Key_code_monitoring-monitoring_keycode_0xE0_0xE7 FF 32 ENG141636-ENG142078-Key_code_monitoring-monitoring_keycode_0xE8_0xEF FF 32 ENG141636-ENG142079-Key_code_monitoring-monitoring_keycode_0xF0_0xF7 FF 32 ENG141636-ENG142080-Key_code_monitoring-monitoring_keycode_0xF8_0xFF FF 32 ENG107658-ENG126192-mobile phone voice control availability-apple_device not installed 1 ENG107658-ENG126193-mobile phone voice control availability-other_devices not installed 1 ENG167428-ENG167502-nhtsa_properties-limitation_dependency Speed_threshold 5 ENG167428-ENG167510-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_limit_displayed_message_length activated 5 ENG167428-ENG167511-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_setup_configuration activated 5 ENG167428-ENG167512-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_text_input not activated 5 ENG167428-ENG167513-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_video_playback activated 5 ENG167428-ENG167514-nhtsa_properties-nhtsa_limitation_switches_for_androidauto_no_voice _input not activated 5 ENG167428-ENG167515-nhtsa_properties-nhtsa_limitation_switches_for_carplay_limit_musicLists not activated 5 ENG167428-ENG167516-nhtsa_properties-nhtsa_limitation_switches_for_carplay_limit_nonMusicLists not activated 5 ENG167428-ENG167517-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_japanMaps not activated 5 ENG167428-ENG167518-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_softKeyboard not activated 5 ENG167428-ENG167519-nhtsa_properties-nhtsa_limitation_switches_for_carplay_no_softPhoneKeypad not activated 5 ENG117921-Operating_and_Display_Unit_1_Proximity_Sensor_Basic_Adaptation 01 01 28 02 50 02 50 02 28 02 50 02 64 02 6E 02 78 02 3C 02 3C 02 3C 02 50 02 1E 02 1E 02 1E 02 1E 02 02 02 02 14 05 48 40 ENG117809-p_damping_Display 5 ms 1 ENG117808-p_HMI_Display 13 % 1 ENG122219-ENG122287-Radio_Level_Quality_Offsets-Set_AM_Quality_Level_Offset 0 2 ENG122219-ENG122288-Radio_Level_Quality_Offsets-Set_FM_Quality_Level_Offset 0 2 ENG117912-ENG117775-Select_Remote_Test_DAB_Service-Parameter_Adaption_Service_ID Conditions not correct or request sequence error 2 ENG117912-ENG117776-Select_Remote_Test_DAB_Service-Parameter_Adaption_Subservice_ID Conditions not correct or request sequence error 2 ENG117910-Set_Remote_Test_Channel_Scanning Conditions not correct or request sequence error 2 ENG117908-Shift_Remote_Test_Frequency_AM Conditions not correct or request sequence error 2 ENG117909-Shift_Remote_Test_Frequency_DAB Conditions not correct or request sequence error 2 ENG117907-Shift_Remote_Test_Frequency_FM Conditions not correct or request sequence error 2 ENG117906-Shift_Remote_Test_Volume Conditions not correct or request sequence error 2 ENG117919-Startup_Screen_Sticker_HMI 00 00 2 ENG117905-ENG99753-Testmode_Video_speed_cutoff-PIN 0 3 ENG117905-ENG109008-Testmode_Video_speed_cutoff-speed_limit 0 km/h 3 Elapsed Time: 00:56 Bij deze mijn admap van 17 en 5F Ik heb een digitaal instrument cluster, mib 2.5 radio zonder dynaudio.

Ik haal veel info en handleidingen/schema's van deze site: KLIK

Dit was het laatste zetje wat ik nodig had om de keuze 100% definitief te maken 🤣

De keuze is inmiddels definitief op een B12 set gevallen. Heb inmiddels Carrec weer een bericht terug gestuurd of ze wel een B12 set willen plaatsen. Ze zijn helaas niet zo snel met reageren op offerte vragen

Ik denk dat ik de optie van een Bilstein B12 set in overweging ga nemen. Onder mijn Volvo had ik Eibach veren met originele dempers en dat beviel me erg goed. Aangezien de huidige dempers nu 150K km oud zijn denk ik dat het wijs is om de complete set te laten vervangen en een B12 set een goede optie zou kunnen zijn. Lager dan 3 a 4 cm wil ik toch niet dus schroefsets vallen sowieso af (bij CARREC zijn ze gek op KW schroefsets namelijk)

Hallo allemaal, Ik heb een offerte aangevraagd bij CARREC om de draagarmrubbers te laten vervangen voor powerflex varianten. Ik had ook gevraagd om gelijk de veren te vervangen voor een set verlagingsveren van H&R. Dit werd met klem afgeraden, ze had in het algemeen slechte ervaringen met het verlagen van een passat b8 en als ze het al deden dan alleen met een set schokbrekers en veren die op elkaar zijn afgestemd. Wat is jullie idee daarover? Groeten Jan Willem

Ik weet dat het erg belangrijk is dat je de juiste update download die voor jouw systeem is. Liep daar zelf bij mijn eerste update ook tegen aan en kwam er uiteindelijk achter dat ik steeds de verkeerde versie downloade.

Dat plaatje ziet er niet uit als de zekeringkast van een passat B8... Althans, de mijne ziet er anders uit 😊

Zojuist even met 2 schroevendraaiers geprobeerd om een handgreep die in het plafond zit te verwijderen. Dat is gelukkig gelukt en zal dus geen probleem gaan worden. Dan kan je al bijna de hemel zo ver omlaag halen dat je bij de lamp kan. Als ik de volgende keer de bovenkant van de B stijl ook weg haal kan je er prima bij. Dit gaat goed komen 😀 Bedankt zover voor jullie help en mee denken

Maandag heb ik een afspraak om de kessy te gaan programmeren (sleutels inleren ensow) als dat klaar en het laadje is dicht in mijn hoofd dan maar eens gaan stoeien met de interieur verlichting als ik vrij ben.

Dankjewel voor te terugkoppeling. Een los geschoten klep hoor je niet vaak, maar begrijpelijk dat dit een reden is om te gaan zoeken naar een andere auto. Succes met de zoektocht.

Mijn Passat is van januari 2019. Ik heb de gehele reparatiehandleiding van het interieur, daar heb ik ook in gevonden dat je ze van bovenaf moet los klikken. Ik hoop dat het lukt als ik de B stijl los haal en de beide handgrepen die boven de deuren zitten verwijder. Met een beetje geluk heb ik dan genoeg ruimte.

Aan zoiets zat ik ook al te denken, maar gepaste voorzichtigheid zal inderdaad dan erg belangrijk zijn.

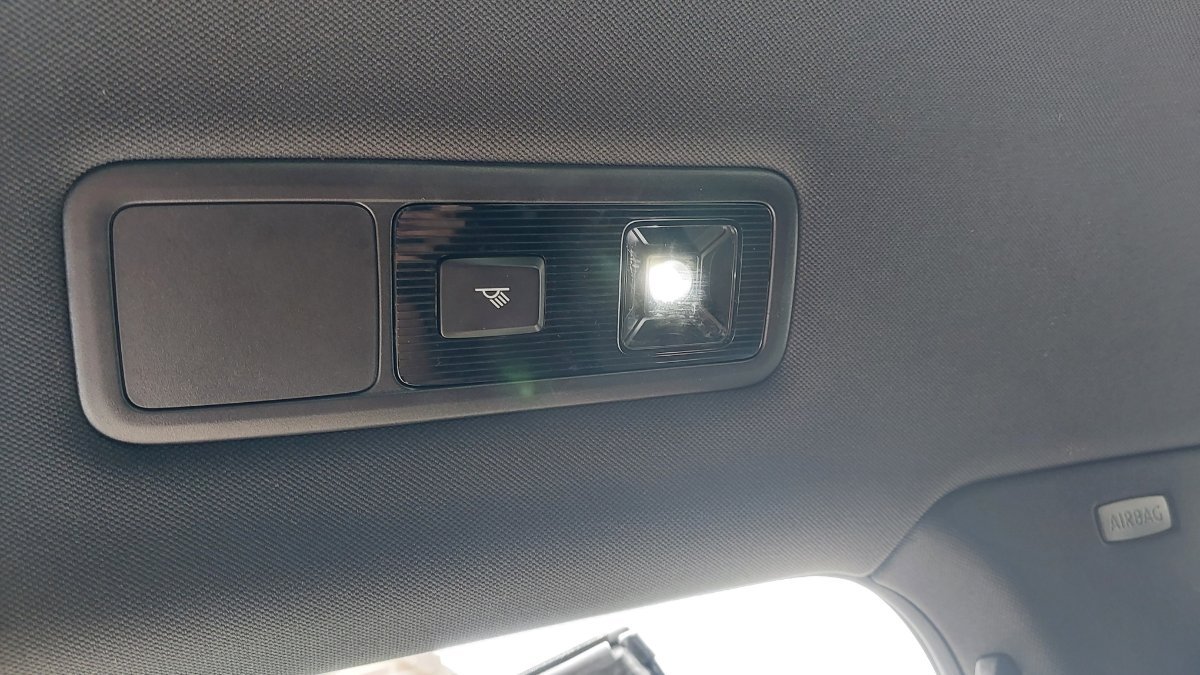

Ik ben aan het uitzoeken hoe ik de interieurverlichting achter moet verwijderen, ik heb een panoramadak dus heb een lampje links en rechts. Als ik in de reparatiehandleiding kijk geven ze aan de hele hemelbekleding er uit moet en zodat je vanaf de bovenkant de klemmetjes in kan duwen waardoor de unit is te verwijderen uit de "kom" waarin deze is geplaatst. Dit klinkt als een wel erg rigoureuze handeling, is er niet een eenvoudigere manier om de units te vervangen? Ik bedoel dus deze lampjes:

Maar bij een batterijspanning van 6.8 volt zal de startmotor sowieso niet gaan draaien. Daarbij zie ik in de log ook een probleem bij module 61 (dynamo) Misschien een defecte dynamo of regelaar waardoor de accu niet is geladen? Niet om eigenwijs te zijn hoor maar goed bedoeld om mee te denken en te helpen.

Laat maar, te snel gelezen. Dacht dat het om de a stijl ging, maar zie dat het om de b stijl gaat

Kan je ook ergens de input monitoren om zo te kijken of het signaal wel binnenkomt in de module?

Heb je ook geprobeerd om middels een outputtest de trekhaak uit te laten klappen? Misschien dat je zo kan uitsluiten of het aan de schakelaar ligt of aan iets anders. Wellicht dat je ook wel ergens de input van de schakelaar kan checken maar weet niet precies hoe dat moet in vcds. Moet volgens mij wel kunnen.

Dat zwarte embleem is wel heel erg gaaf 😇

Heel veel sterkte aan alle nabestaanden toegewenst

Voor die 160 euro verschil zou je de witte kunnen nemen en rustig kijken hoe het in elkaar zit. Wat een bizar verschil 🙈 BM heeft wel mega veel dus misschien aar eens door de site scrollen? Geen idee of deze past maar het nummer is gelijk alleen de letters zijn anders. Wel zwart en voor niet veel geld https://www.bm-parts.nl/onderdeel/340347/zonneklep-rechts-vw-t-roc-r-line
